Kingfisher KI9828A-APC & KI9600A-InGaAs Pocket Loss Test Set

Kingfisher KI9828A-APC & KI9600A-InGaAs Pocket Loss Test Set
Kingfisher logo

Kingfisher KI9828A-APC & KI9600A-InGaAs Pocket Loss Test Set

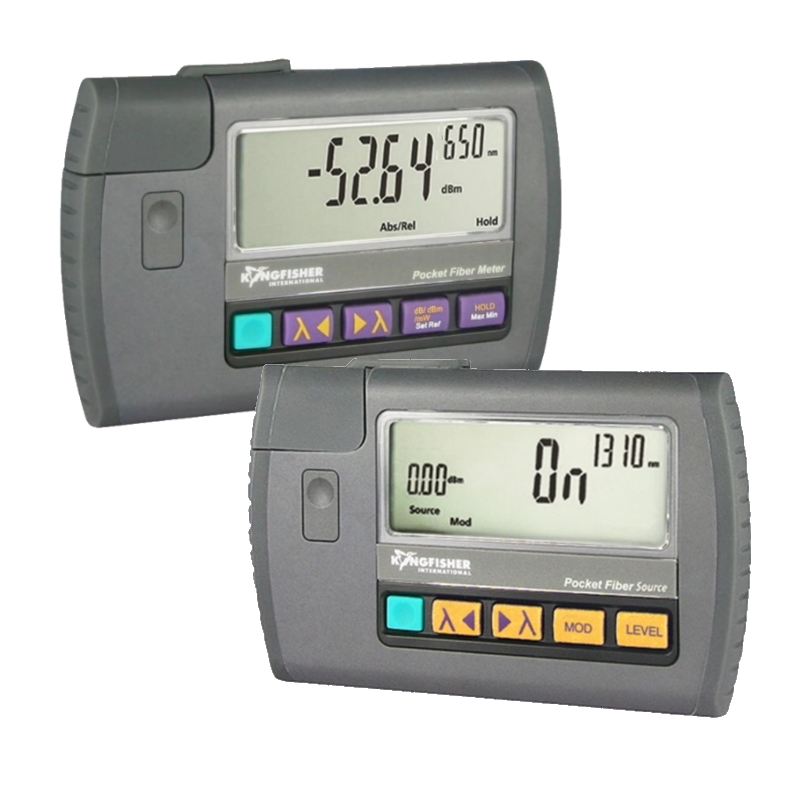

The Kingfisher Budget Pocket Loss Test Set is comprised of the KI9828A-APC 1310 / 1550 / 1625nm light source and the KI9600A-InGaAs Power Meter.

Tri-Wavelength Optical Laser Source KI9828A-APC

The shirt-pocket size KI 9828A-APC Tri-Wavelength Pocket Fiber Source is ideal for general testing of single mode systems at 1310, 1550 and 1625 nm. It provides, high accuracy and simplicity of use, and has an APC polish connector.

  • Rugged, drop-resistant construction
  • User defeatable auto turn-off
  • Excellent stability
  • Lanyard, shirt pocket clip & padded pouch
  • Tone generator & Multi-Fiber ID function
  • Easy use TamperLock mode
  • Compatible with Autotest power meters
  • Interchangeable connectors
  • Full QA reports with ISO9001 compliant calibration

Pocket Fiber Optic Power Meter KI 9600A-InGaAs

The inexpensive KI 9600A-InGaAs Shirt-Pocket Power Meter is a simple and reliable optical power meter for testing power and loss on single mode fiber optic systems. It provides high accuracy and simplicity of use.

  • 9 calibration ë, ±2% accuracy, ISO 17025 traceable
  • Small size, easy to use, rugged & reliable
  • dBm / dB / linear, 0.01 dB resolution
  • Display hold & max/min recording
  • Tone detector with  Multi-Fiber ID
  • Easy to use TamperLock mode
  • Interchangeable connectors
  • Full QA reports
