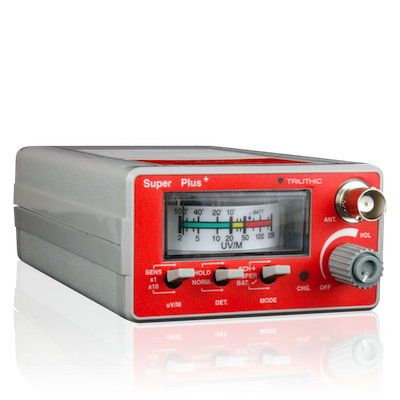

Trilithic Super Plus RF Leakage Detector, 124 MHz

Trilithic’s Super Plus Leakage Detector is ideally suited for the new era of digital program services and overbuilt systems. The Super Plus offers exceptional immunity to "false alarms" from other signal sources – including ignition noise, power line interference and even leaks from other systems – making it the perfect instrument for identifying leaks in noisy areas. Offering up to four times the sensitivity of other leakage receivers and the broadest performance capabilities of Trilithic’s leakage detector family, the Super Plus is small enough to fit into the Searcher Plus mobile mount and can be used with the same antennas.



Specifications

  • Frequency Range Single frequency: 108.0000 to 157.2500 MHz
  • Selectivity: Typical 15 KHz at -3 dB
  • Measurement Accuracy: +/-1.5 dB @ 25° C (77° F), +-3.0 dB @ -18° C to 49° C (0° to 120° F)
  • Alarm Indication: Audio tone with pitch proportional to full scale meter deflection. Detected audio super-imposed on alarm tone.
  • Meter Functions: 2–2000 ?V/m in 2 ranges, normal amplitude tracking. When detector is set to HOLD mode, the peak reading is held 5 seconds before auto-reset.
  •
