Submarine Cable Network Testing by VIAVI Solutions | TMG Test Equipment Purchase Submarine Cable Network Testing Solutions from VIAVI Solutions Master Distributor TMG Test Test Equipment. Throughout the network life cycle, it is critical to use the right test and monitoring tools. TMG are experienced in providing solutio

Submarine Cable Networks

Submarine Cable Networks
Submarine Cable Networks

Throughout the network life cycle, it is critical to use the right test and monitoring tools.

TMG Test Equipment are experienced in providing solutions for building, activating, and maintaining submarine cable networks. These networks present unique challenges associated with accessibility, long distances, and constant exposure to the elements. Submarine Cable Network Diagram A submarine cable is a communications cable laid on or below the floor of the ocean or other body of water. A submarine cable network is an integrated system of cables collectively providing data transfer from one land-based location to another. This network includes the cable itself as well as other hardware components and infrastructure that make this large-scale communication possible. Despite the proliferation of satellite communications, over 95% of international data transfer is still performed via submarine cable networks.

Products

VIAVI MAP-2100 - Rack-mounted test unit for remote BER tests
VIAVI Solutions (formerly JDSU) logo

VIAVI MAP-2100 - Rack-mounted test unit for remote BER tests

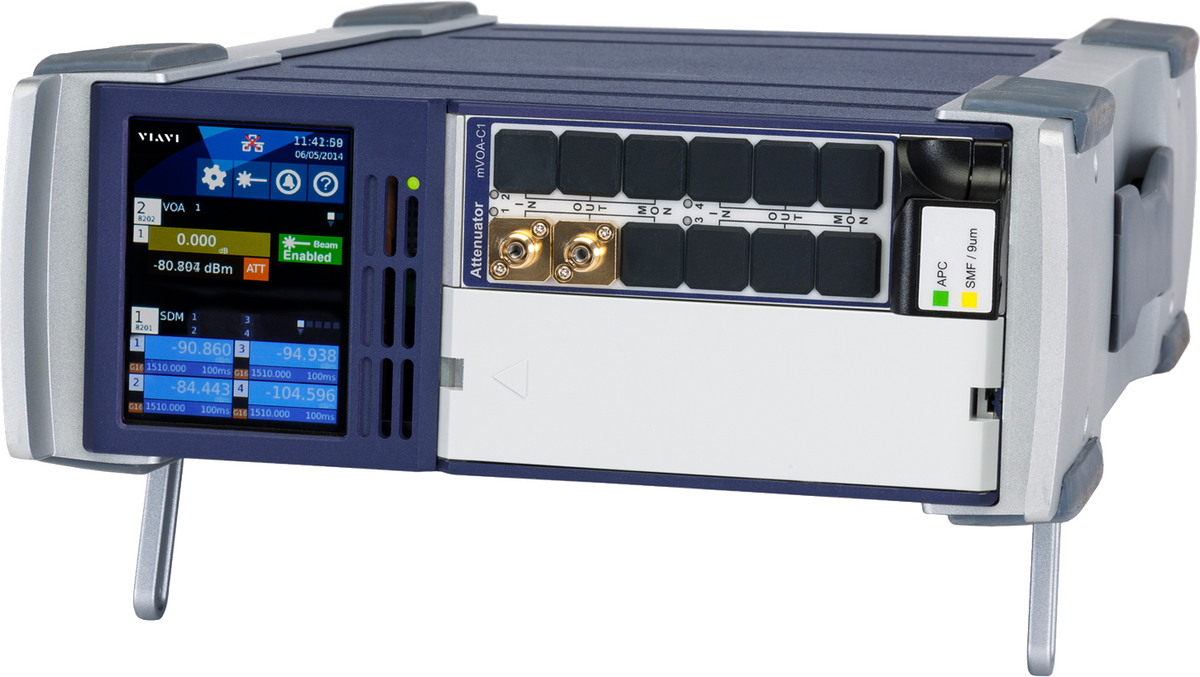

VIAVI MAP-220C - Compact Platform for Optical Test Switching
VIAVI Solutions (formerly JDSU) logo

VIAVI MAP-220C - Compact Platform for Optical Test Switching

VIAVI MAP-300 - Gen 3 Optical Test & Measurement System
VIAVI Solutions (formerly JDSU) logo

VIAVI MAP-300 - Gen 3 Optical Test & Measurement System

VIAVI MAP-mTFX - MAP Multiport Tunable Filter Module
VIAVI Solutions (formerly JDSU) logo

VIAVI MAP-mTFX - MAP Multiport Tunable Filter Module

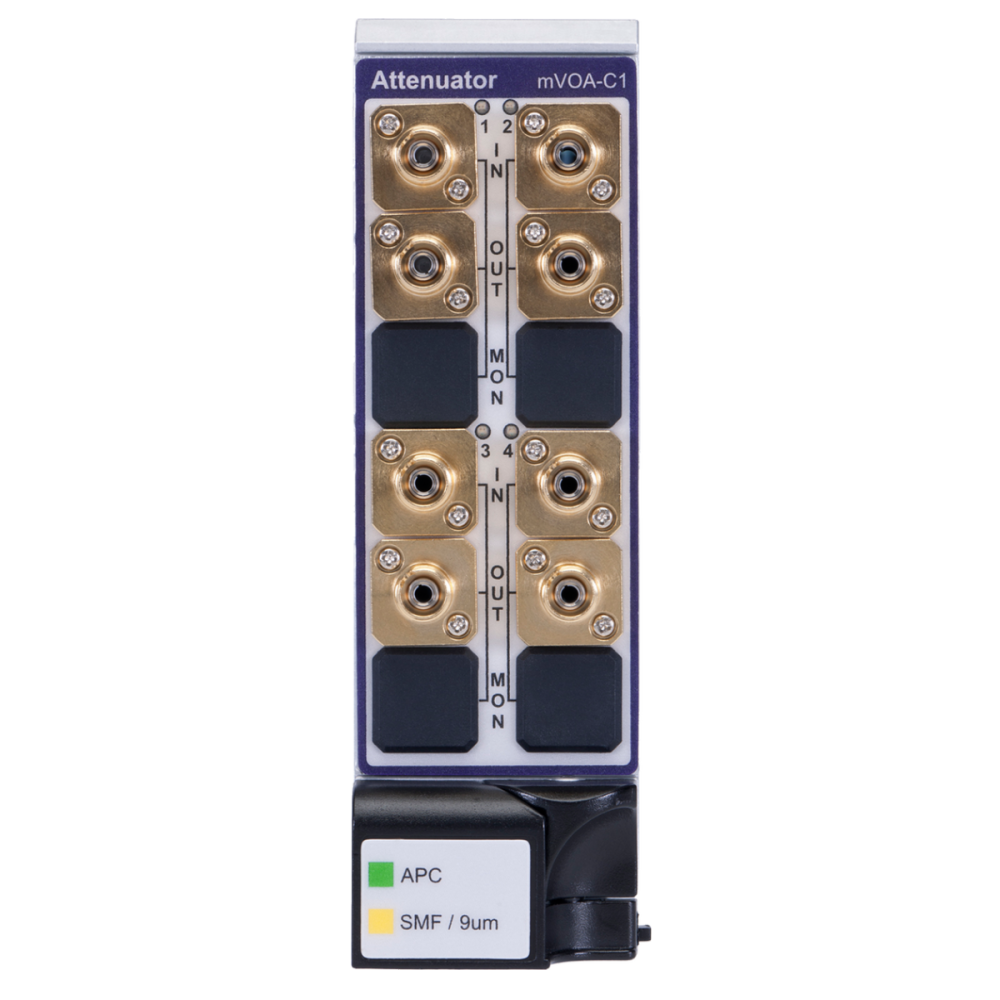

VIAVI MAP-mVOA - MAP Variable Optical Attenuator
VIAVI Solutions (formerly JDSU) logo

VIAVI MAP-mVOA - MAP Variable Optical Attenuator

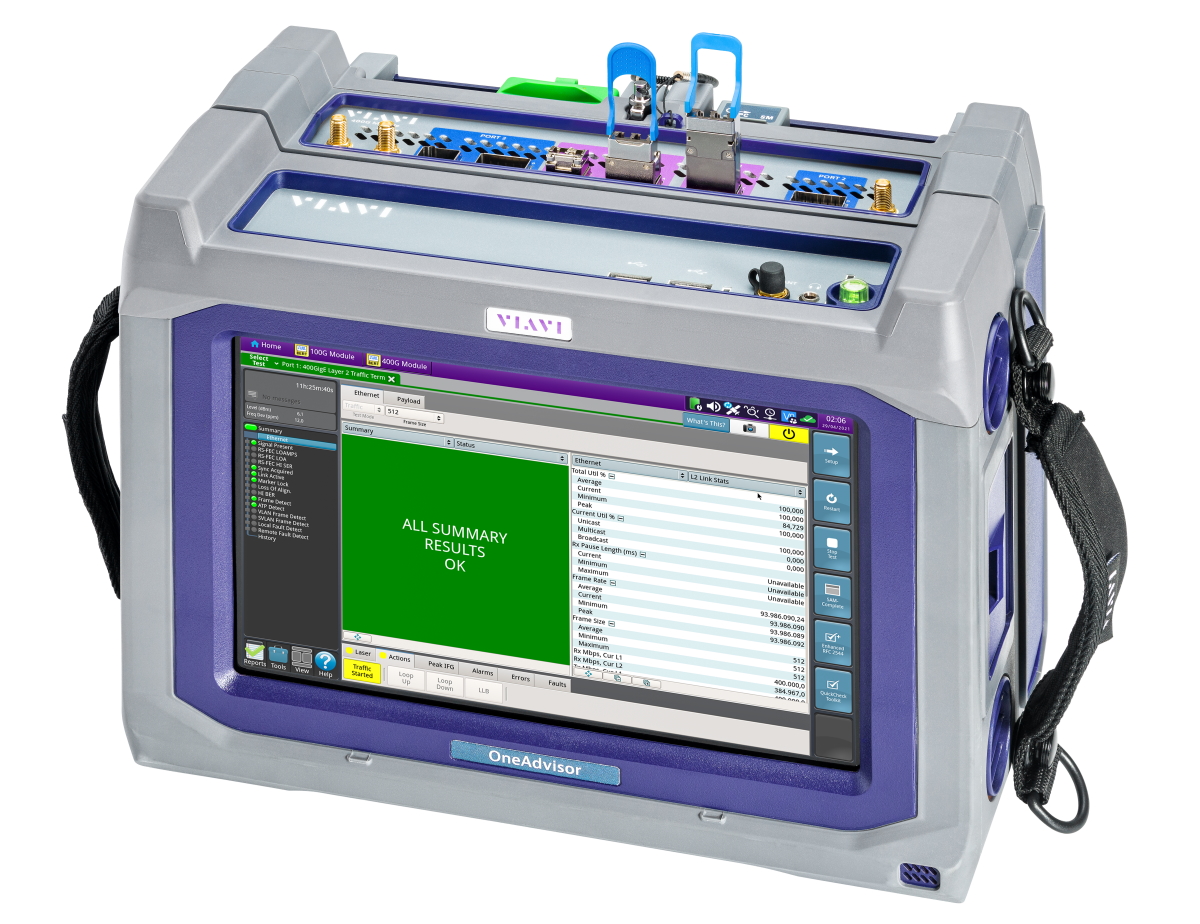

VIAVI OneAdvisor-1000 - High-Speed, Portable Network Tester Up to 400G
VIAVI Solutions (formerly JDSU) logo

VIAVI OneAdvisor-1000 - High-Speed, Portable Network Tester Up to 400G

Only need a unit for the short term?  No worries!
This is available to rent.  Enquire Today

VIAVI MTS-5800 Handheld Network Tester
VIAVI Solutions (formerly JDSU) logo

VIAVI MTS-5800 Handheld Network Tester

Only need a unit for the short term?  No worries!
This is available to rent.  Enquire Today

VIAVI SmartOTU - Standalone Remote Fibre Test Solution
VIAVI Solutions (formerly JDSU) logo

VIAVI SmartOTU - Standalone Remote Fibre Test Solution

Submarine Network Architecture

The overall architecture of submarine cable systems is probably best defined by the individual elements it is composed of from end to end. Each of these components plays an essential role in maintaining the integrity of data through thousands of miles of unpredictable ocean.

During construction, end face inspection can detect dirt particles or other physical defects whose impact can either diminish or halt the performance of the network (and produce bad test results). Perhaps the most essential tool for physical layer fibre verification is the OTDR. Specialized types can be used for long haul wet plant OTDR as well as versatile bidirectional dry plant OTDR.

Another parameter that must be measured and controlled during cable deployment for submarine network construction is the amount of strain being placed on the actual fibres; this must be lower than 0.34% for submarine fibre grade (IEC 60794-3-20), higher values will reduce the lifespan of the fibres. Strain measurement can be performed using portable Brillouin OTDR. Optical dispersion tools are also pivotal to the characterization of networks in order to baseline optical dispersion and assess if any dispersion compensation is required.

Service activation requires tools for optical power measurement and spectrum analysis along with data network equipment testing. In order to quantify optical power, a ruggedized optical power meter is an essential tool. High quality Optical Spectrum Analysers (OSA) for performing Optical Signal-to-Noise Ratio (OSNR) measurement and Network testers for latency, throughput, jitter, and frame loss/bit error rate analysis are also a must during this phase to validate and certify network performance.

Monitoring and maintenance are the keys to keeping the vital cable networks performing optimally. To assess the fibre’s physical health, an effective optical network monitoring system such as ONMSi can provide real-time fault, degradation, and security issue monitoring.

Fibre monitoring of links is an essential ongoing function. ONMSi can be used to detect fibre degradation and a wide array of fibre monitoring techniques may be utilized to meet the unique challenges associated with a fault. For example, to detect fluctuations in strain, temperature, and other parameters inherent to submarine cables, fibre optic sensing tools play a critical role. In addition, service performance monitoring is key to proactively identifying data issues (such as latency, throughput, jitter, and frame loss/bit error rate) and is usually required in order to prove SLA compliance for customers.

Exec Time: 0.245285 Seconds Memory Usage: 4.697716 Megabytes
