1000 UEs on your desk

AMARI UE Simbox is an ideal solution to support functional and performance testing of LTE eNodeB, 5G NR gNodeB in NSA or SA mode as well as LTE and 5G core networks.

One single AMARI UE Simbox can simulate hundreds UEs sharing the same spectrum with different types of traffic within multiple cells. Each UE can be configured independently as LTE, 5G NR, NB-IoT or LTE-M device.

The offer is completed by an integrated IP simulation package for reproducible test results.

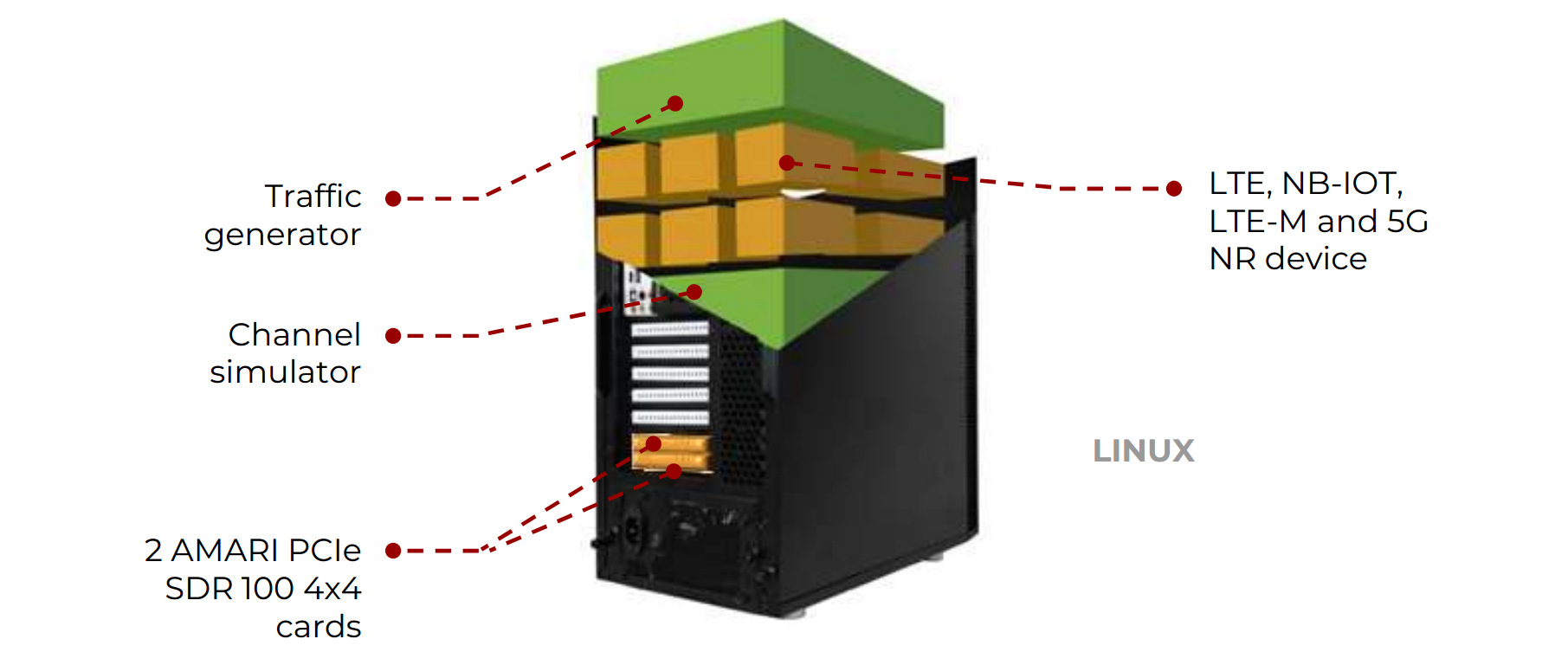

Complete Software Based NR/LTE Network Test Solution
The LTE/NR Network on your desk

Logging and Measurements

Selective logging and display of all layers of 3GPP LTE and NR stack as well as useful graphs and analytic tools

Automatic Test Setup and Scripting

Extensive WebSocket API allowing to send remote commands to each simulated UE to ease test automation

Easy Configuration

Easy configuration thanks to JSON files with example configurations already included in each software release

End-to-End Data Testing

Running on top of standard Linux in user space mode allowing easy integration with IP services

Data Traffic Generator

Embedded traffic generator provides a controlled environment for reproducible results as well as a variety of traffic types such as TCP, UDP and HTTP.

Channel Simulation

On the downlink side, depending on the simulated UE path loss, the channel simulator modifies the PER of PDSCH and PDCCH and updates measured RSRP/CQI and modifies the uplink signal level accordingly.

Test Features

Test features allowing to override the nominal protocol behavior in order to simulate error cases

High Performance

Highly optimized software supporting multiple UEs and cells

Frequency Agnostic

Support of all FDD and TDD sub-6GHz bands even non standard ones to test custom frequencies

3GPP Features

Early access to 3GPP features for rapid validation of features under development
