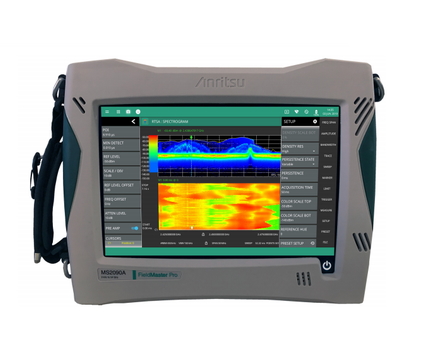

Anritsu MS2090A - Field Master Pro Handheld Spectrum Analyzer

Only need a Anritsu MS2090A for a short term?  No worries! AVAILABLE TO HIRE/RENT Enquire Today

KEY FEATURES

• 9 kHz to 9/14/20/26.5/32/43.5/54 GHz Models Available
• DANL: -164 dBm (with preamp)
• TOI: +20 dBm (typical)
• Analysis bandwidth: 100 MHz
• Amp range: DANL to +30 dBm
• Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
• Demodulation: 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
• Resolution bandwidth (RBW): 1 Hz to 10 MHz
• RTSA bandwidth: 22, 55, 110 MHz (option dependent)
• Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB, typical)
• Zero span with 60 ns minimum span
• IQ capture and streaming
