Anritsu MT1000A - Network Master Pro (Ethernet/CPRI/OTDR Test Equipment) MT1000A is an All-in One field tester of B5 size excellent in operability, combined 10G / 100G Ethernet, OTN, SONET/SDH, OTDR, PTP and CPRI modules, having the automating testing function. Anritsu_MT1000A Anritsu MT1000A TMG Test Equipment
Anritsu

Anritsu MT1000A - Network Master Pro (Ethernet/CPRI/OTDR Test Equipment)

Anritsu MT1000A - Network Master Pro (Ethernet/CPRI/OTDR Test Equipment)
Anritsu logo

Anritsu MT1000A - Network Master Pro (Ethernet/CPRI/OTDR Test Equipment)

Only need a Anritsu MT1000A for a short term?  No worries! AVAILABLE TO HIRE/RENT Enquire Today

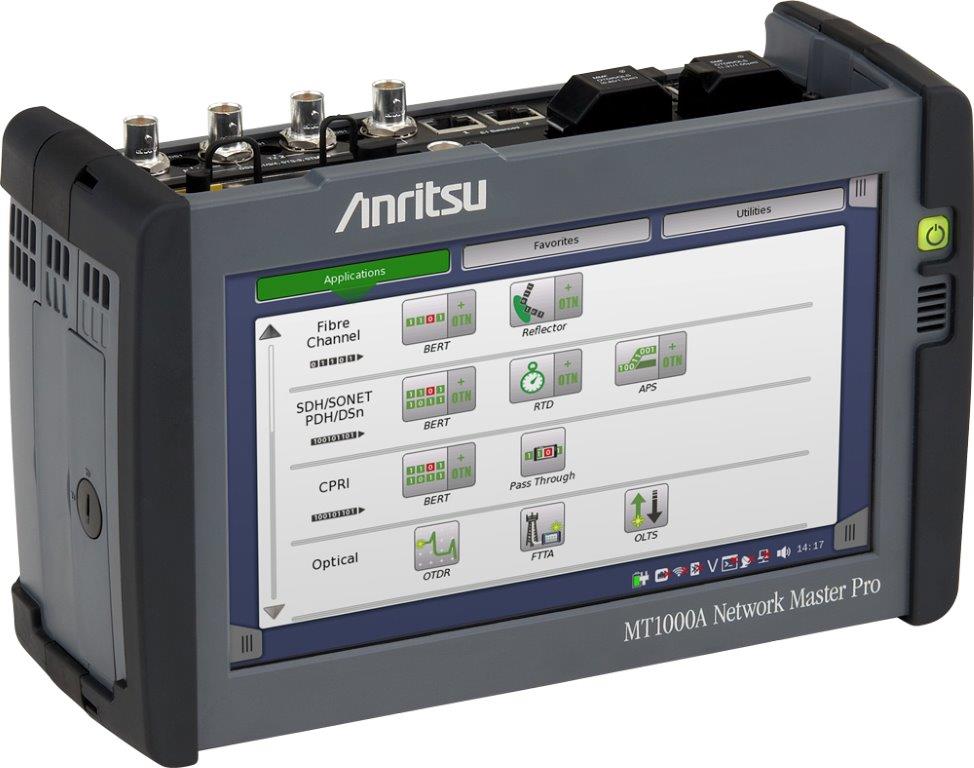

The compact, battery-powered and easy-to-use Anritsu MT1000A provides everything needed to install and maintain communication networks in a rugged, field portable package. This lightweight instrument simplifies the daunting task of collecting and interpreting data with an easy-to-use GUI and clear summaries allowing users of any skill level to operate the instrument to its full potential.

The MT1000A is multi-function tester that can be configured with an array of transport testing functions and OTDR modules to ensure you have the tools you need today plus the expandability for future technologies – all of which are field upgradeable.

Key Features:

  • Verify proper fiber installation and fiber loss characteristics are within the specified budget
  • Fiber Visualizer simplifies testing with an easy to read graphical summary of the results
  • Ability to toggle between graphical summary and traditional OTDR trace
  • Specialized testing modes simplify operation
  • High resolution and dynamic range ensure quick and thorough fiber evaluation
  • Intelligent analysis software identifies problem splices, connectors and even macrobends
  • Test multiple wavelengths with a single unit
  • One button PDF report generation
  • Standard power meter and light source
  • Visual fault locator option
  • Verify fiber end face condition (dust, scratches) and cleanliness with optional connector inspection microscope

The all-in-one design supports 5G base-station interface eCPRI/RoE throughput and delay measurements as well as high-accuracy time synchronization tests.

  • Various modules
    • OTDR Module
    • Transport 10G module
    • Transport 100G module
    • CPRI RF module
  • One-button network commissioning tests and easy network installation and maintenance
  • Compact, rugged design provides years of service in the most challenging environments
  • Large 9-inch enhanced display for easy viewing of results indoors or outdoors
  • Linux OS provides quick boot up and stable, virus free operation
  • Easy and intuitive GUI
  • Simple SETUP, TEST, RESULTS three window operation
  • Modular design with field installable modules and options maximizes your investment
  • WiFi/Bluetooth/LAN connectivity
  • Multiple remote control options including VNC
  • Comprehensive, customizable report generation
  • OTDR and 100G transport module can be simultaneously installed
  • Available CPRI RF Measurement Module to display LTE spectrum of CPRI uplink and downlink signals
  • BBU Emulation
