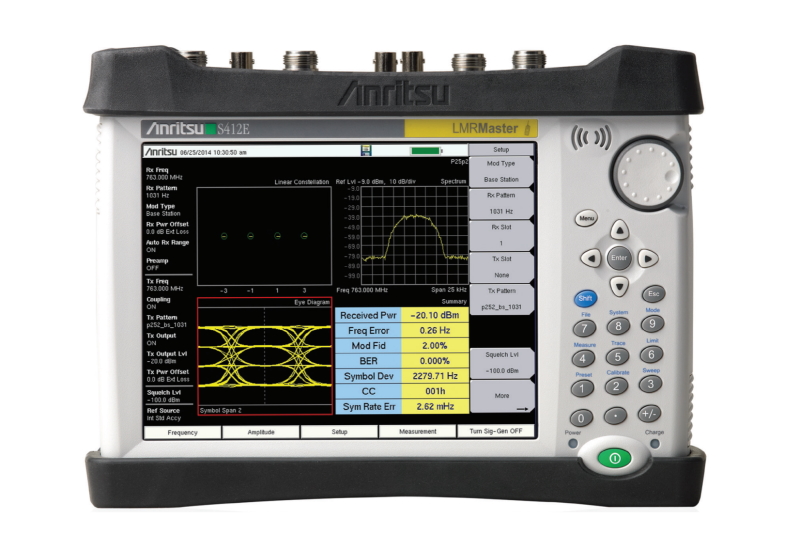

Anritsu S412E - LMR Master Cable, Antenna, Spectrum, Interference; 500 kHz to 1.6 GHz

Only need a Anritsu S412E for a short term?  No worries! AVAILABLE TO HIRE/RENT Enquire Today

The LMR Master S412E is Anritsu's second generation solution for installing and maintaining public safety systems. Built on Anritsu's ninth generation handheld platform, the LMR Master combines a high performance receiver / spectrum analyzer with the advanced handheld vector network analyzer plus a CW / P25 (Phase 1 & Phase 2) / NXDN™ / ETSI DMR / MotoTRBO™ signal generator with internally adjustable power from 0 dBm to –130 dBm.

The CPRI/OBSAI RF option allows users to see the Uplink and Downlink signals via the optical CPRI/OBSAI link in a traditional RF Spectrum and Spectrogram view.

KEY FEATURES

• 2-Port Cable & Antenna and distance domain analysis: 500 kHz to 1.6 GHz (user may also select the more flexible vector network analyzer display)
• Spectrum Analyzer: 9 kHz to 1.6 GHz
• CW/FM/AM Signal Generator: 500 kHz to 1.6 GHz
• Power Meter: 9 kHz to 1.6 GHz
• Narrowband FM Analysis: Received power, carrier frequency, frequency error, deviation, modulation rate, SINAD, THD, CTCSS, DCS, and DTMF
• Auto Scan locks on to unidentified FM signal sources between 10 MHz and 1.6 GHz
• Indoor Coverage Mapping of RSSI and transmitter SINAD is standard on the LR Master
• Outdoor Coverage Mapping is available with the optional GPS receiver

This instrument is ideal for land mobile radio (LMR) and professional mobile radio (PMR) technicians and engineers engaged in field testing the RF performance of NBFM, P25, P25 Phase 2 (TDMA), DMR (MotoTRBO), TETRA, NXDN, dPMR, and FDD & TDD LTE for commercial, public safety, maritime, and critical infrastructure radio systems. It also offers support for USA Class 1 and passenger railway Positive Train Control systems Interoperable Train Control Radio (ITCR) and Advanced Civil Speed Enforcement System (ACSES). For railway operators that use GSM-R systems, the LMR Master can be configured with GSM/GPRS/EDGE measurements.
