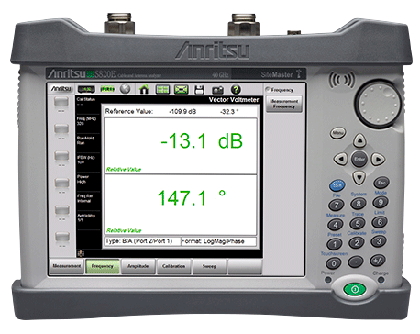

Anritsu S820E - Microwave Site Master Handheld Cable and Antenna Analyzer

Return Loss

VSWR

Cable Loss

Smith Chart

Phase

Distance-to-fault Return Loss

Distance-to-fault VSWR

Hi-Accuracy RF Power (USB Sensor required

2-port Transmission Measurement

2-port Transmission Measurement (Ext. Sensor required)

2-port Swept Cable Loss (Ext. Sensor required)

Fully reversing sweep, no need to reverse DUT for S12 and S22 measurements

Simultaneous measurement of all 4 S-Parameters for a 2 port device

User configurable quad display in 1,2,3 or 4 display trace format with any combination of trace overlays

Large selection of graph types, including Real Impedance and Imaginary Impedance

IFBW selection from 10 Hz to 100 kHz in 1/2/5 format

Saves S2P files (3 formats), measurement files (.svna), screen images (.png), CSV and TXT files

Reference plane extension (both ports) feature also allows compensation for loss

User definable arbitrary data points, not limited to fixed selection

Interpolation (user selectable on/off) reduces need to re-calibrate

Independent trace-based smoothing, markers, limits, and pass/fail testing

Vector Error Corrected Reflection and Transmission for absolute measurement of devices

A/B or B/A Ratio capability. May be used as drop-in replacement for legacy Vector Voltmeter

Variable IFBW settings from 10 Hz — 100 kHz to optimize performance

Flexible measurement formats include:
 – LogMag & Phase
 – LinMag & Phase
 – SWR
 – Impedance

Table Display provides simultaneous measurement of 12 devices + 1 reference

Multiple file save formats such as Measurement (.vvm), CSV (.csv), Text (.txt), or Image (.png)

Vector Network Analyzer Mode:

Provides fully reversing sweep, 4 S-Parameter simultaneous measurement capabilities with user configurable quad display.

Generates standard industry compatible format S2P files (3 types of S2P files are available).

S2P files can be imported into Anritsu benchtop VNA’s (VectorStar™ and ShockLine™) for ease of comparison between field and lab measurements.

Vector Voltmeter with A/B & B/A Ratio Capability:

Provides 1-Port Reflection measurements, 2-Port Transmission measurements, plus A/B or B/A Ratio capability.

Does not require any other options to support A/B or B/A measurements. Vector error correction capability for Reflection or Transmission measurements allows absolute DUT measurements to be made.

Table display provides convenient measurement of up to 12 devices + 1 reference simultaneously.

May be used as a drop-in replacement for traditional Vector Voltmeters when A/B or B/A functionality is required.
