BK Precision 4045

BK Precision 4045
BK Precision logo

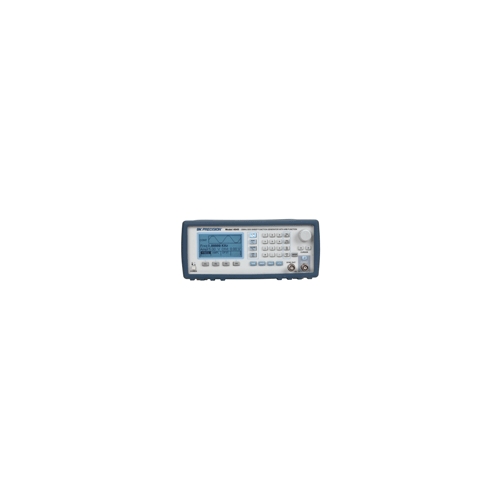

BK Precision 4045

The model 4045 is a must have for anyone needing a low cost, full featured direct digital synthesis (DDS) generator with a menu-driven front panel interface that includes a large, easy-to-read graphical LCD display. Waveform parameter changes and data entry can be made using the rotary knob or via the built-in RS-232C interfaces. The unit generates superb quality waveforms with high signal precision and stability. It provides sine & square wave outputs over the frequency range from 0.1 Hz to 20 MHz in one extended range (triangle/ramped wave outputs to 1MHz) Arbitrary waveforms can be edited from scratch or by modifying standard waveforms. A full range of triggering capabilities is available, including internal-external trigger source, gated and burst modes of operation.

# 20MHz Frequency Range (sine & square only)
# Sine, Square, Triangle & Arbitrary Waveforms
# Modulation in both AM & FM
# Lin or Log Sweep Function
# Adjustable Duty Cycle
# Adjustable DC Offset
# Bright Informative LCD
# RS-232C Interfac
