Boonton 71K Boonton_71K 71K TMG Test Equipment
Boonton

Boonton 71K

Boonton 71K
Boonton logo

Boonton 71K

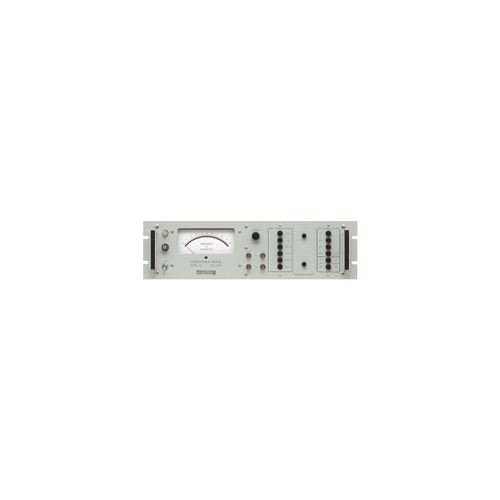

The 71K Capacitance Meter is a completely self-contained meter. Performing direct 3-terminal measurements has never been easier or more affordable. The 71K measures capacitance and dissipation at 1kHz and features six capacitance ranges from 0 to 10 ?F, ?(0.2 + 1/q)% of reading +0.01% f.s. (output), ?(1 + 1/q)% of reading +1% f.s. (meter), resolution ?0.1% of reading. Measures dissipation in two ranges from 0 to 0.1, ?2% of reading +0.0005 (output), ?2% of reading +0.0005 +1% f.s. (meter), resolution ?1% of reading. Test signal: 1kHz (?1%) at 1 V nominal (?5%).
