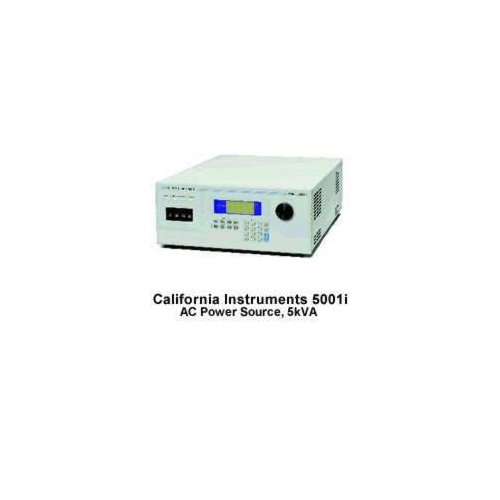

California Instruments 5001I 5000 VA AC Power Source

AC Power Source, Single Phase, 5000 VA single-phase programmable AC/DC (2.5 kW in DC operation) source. 187 to 252 V three-phase input. Multiple units can be connected for high power applications. Includes Windows-based software.
Input Voltage: 208 - 240 VAC 3 Phase, 45 - 66 Hz. Max Output Power: 5000 Watts Voltage Output: 0-135 V or 0-270 V Output Frequency Range: 16 - 500 Hz Max Current Output: 37 Arms (0-135 V range), 18.5A (0-270 V range) Maximum DC Current: 18.5A (0-135 V range), 9.3A (0-270 V range) Maximum DC Volts: 270 V
