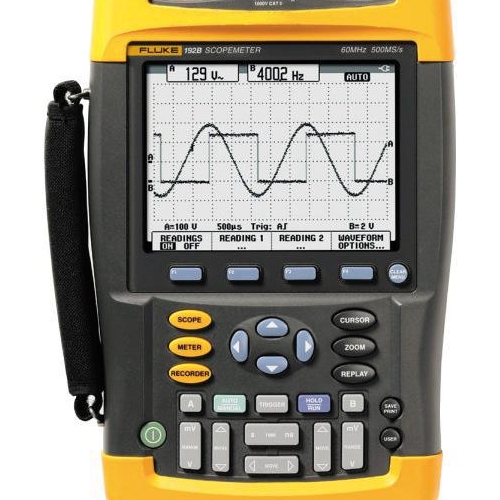

Fluke 192B 60MHz, ScopeMeter

Product Specs:

  • Dual-input 60 MHz bandwidth
  • Up to 2.5 GS/s real-time sampling per input
  • Black & White display
  • High waveform resolution of 3,000 datapoints per channel (NEW)
  • Connect-and-View™ automatic triggering and a full range of manual trigger modes
  • Digital Persistence for analyzing complex dynamic waveforms like on an analog scope
  • Fast display update rate for seeing dynamic behavior instantaneously
  • Automatic capture and replay of 100 screens
  • 27,500 points per input record length using ScopeRecord™ mode
  • TrendPlot™ paperless chart recorder for trend analysis up to 22 days
  • Up to 1000 V independently floating isolated inputs
  • Waveform reference for visual comparisons and automatic pass/fail testing of waveforms
  • Vpwm function for motor drive and frequency inverter applications.
  • 1000 V CAT II and 600 V CAT III safety certified
  • Four hours rechargeable Ni-MH battery pack

Other Info:

The Fluke 192B, Scopemeter, that is a high-performance oscilloscope that offers specifications found on top-end bench instruments.

They're ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery powered instrument.

All models include:

  • BC190 Battery Charger/Line Voltage adapter
  • BP190 NiMH Battery Pack
  • Getting started booklet
  • User manual (CD-ROM)
  • TL75 Hard Point Test Lead Set
  • VPS200-G Voltage Probe (200 MHz, 10:1), Grey
  • VPS200-R Voltage Probe (200 MHz, 10:1), Red
