High-performance oscilloscope with deep memory for engineers
who need the full capabilities of a high-performance scope in a handheld,
battery powered instrument.

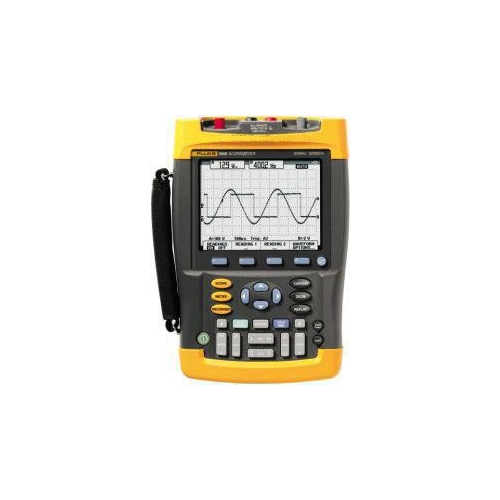

The Fluke model 196B features:
· 60, 100 or 200 MHz bandwidths
· Up to 2.5 GS/s real-time sampling per
input
· Connect & View™ automatic triggering
· Full range of manual trigger modes plus
external triggering
· 24 automatic waveform measurements
· Automatic capture and replay of 100
screens
· 27,500 points per input record length using
ScopeRecord™ mode
· Automatic rise and fall time measurement
· Advanced waveform mathematics for adding,
subtracting and multiplying waveforms
· A versus B waveform display for advanced
signal analysis
· Cursors, zoom and real-time clock
· Rechargeable NiMH battery pack
· 1000V independently floating isolated
inputs
· Includes a 5000 count true-RMS multimeter
and a TrendPlot™ paperless recorder
· 1000V CAT II and 600V CAT III safety
certified
