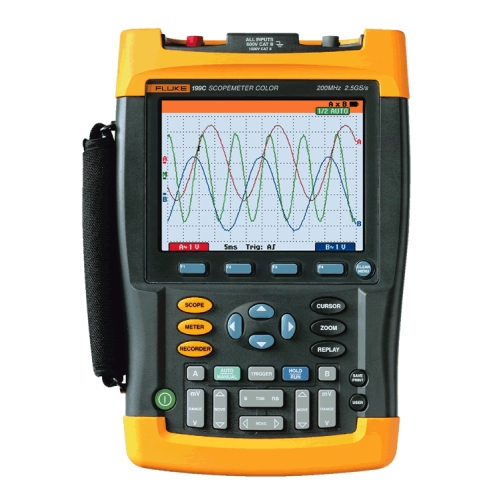

Fluke 199C Color ScopeMeter, 200 MHz

· Dual-input - 200 MHz bandwidth

·  2.5 GS/s real-time sampling per input

·  High Resolution Color display

·  High waveform resolution of 3,000 data points per channel (NEW)

·  Connect-and-View™ automatic triggering and a full range of manual trigger modes

·  Frequency Spectrum Analysis using FFT (NEW)

·  Digital Persistence for analyzing complex dynamic waveforms like on an analog scope

·  Fast display update rate for seeing dynamic behavior instantaneously

·  Automatic capture and replay of 100 screens

·  27,500 points per input record length using ScopeRecord™ mode

·  TrendPlot™ paperless chart recorder for trend analysis up to 22 days

·  Up to 1000 V independently floating isolated inputs

·  Waveform reference for visual comparisons and automatic pass/fail testing of waveforms

·  Vpwm function for motor drive and frequency inverter applications.

·  1000 V CAT II and 600 V CAT III safety certified

·  Four hours rechargeable Ni-MH battery pack

·  Warranty: 3 years, parts and labor on mainframe instrument; 1 year on accessories

·  Power Source: Battery Charger/Line Voltage adapter; NiMH Battery Pack

·  Accessories Included (All Models):

• BC190 Battery Charger/Line Voltage adapter
• BP190 NiMH Battery Pack
• Getting started booklet
• User manual (CD-ROM)
• TL75 Hard Point Test Lead Set
• VPS200-G Voltage Probe (200 MHz, 10:1), Gray
• VPS200-R Voltage Probe (200 MHz, 10:1), Red
