GW Instek / Goodwill GSP-810

* 150 kHz to 1 GHz (1000 MHz) Frequency Range
* Resolution Bandwidths: 3 kHz, 30 kHz, 220 kHz and 4 MHz
* High Frequency Stability : ±10 ppm
* 9 Memories Locations for Save/Recall
* High Resolution of Span to Measure More Detailed Signal:
0, 2 kHz ~ 100 MHz/Div
* Functions: Max. Hold, Average (2 ~ 32 traces), Freeze,
Peak Search, Markers to Center Function
* Spurious Noise : < -60 dB
* High Input Protection Level : +30 dBm, ±25 VDC, 1 Watt
* -30 dBm to +20 dBm Reference Level Range
* Noise Floor Performance:-95 dBm @30 kHz, -100 dBm typical over -150 dBm/Hz typical @220 kHz and 4 MHz RBW
* Two Markers for Absolute and Relative Measurements
* AM/FM demodulator
* RS232 Interface and Software
* Options: Power Meter and Tracking Generator
* 2-Year Warranty

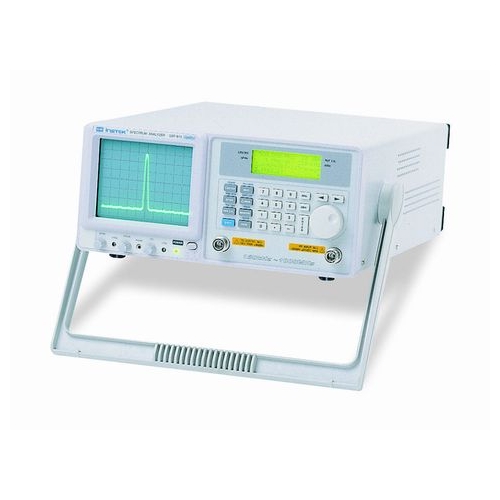

The Instek GSP-810 is a digitally synthesized, easy to use spectrum analyser with a frequency range of over 1 GHz. It uses state-of-the-art design for a phase-locked RF system that combines measurement quality and performance with an affordable price. The GSP-810 has a 1-watt input protection. The small size and light weight of GSP-810 makes this unit easy to carry and stow. The operation of the GSP810 is easy and simple. All of the primary controls are a single push button to access, and the spinner knob makes selections fast. The GSP-810 comes standard with RS-232C and Windows® compatible software to allow you to display the spectrum, save to file and also print. Options include a 1 GHz tracking generator and a 2.7 GHz RF power meter. These functions and features make the GSP-810 an affordable, expandable and quality instrument to fit your needs.
