The 45-164 includes three larger ½" long separate active cutting blades which are all able to be adjusted to the proper cutting depth via a Phillips screw setting for each blade. Blades can be individually set to score the jacket so the inner conductors or shielding do not get damaged.
The tool can be used for jacket stripping or scoring, including midspan access stripping, 2 step conductor preparation by having the .560 spaced side blades cut to different depths one for jacket removal, the other for dielectric removal/conductor exposure. The front blade can be used to slit a jacket end or complete a midspan cut.
The Big Blue Adjustable Ringer handles cable diameters from 6.4mm up to 14.3mm. Other Adjustable Ringers are available to handle smaller cable sizes.
Replacement blades are available for the Ringer product series.
BIG BLUE ADJUSTABLE BLADE RINGER
- Strips larger round cable jackets and inner conductors from 6.4mm up to14.3mm in diameter
- Adjustable blade depth settings allow for a precise strip for multiple cable types and sizes
- 14.22mm blade spacing for 2 step or window strips
- Rounded edge slitting blade included
Overview

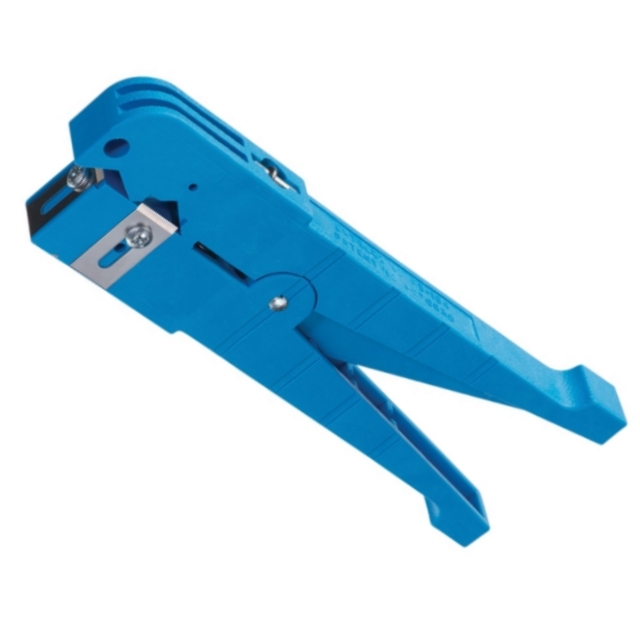

Big Blue Adjustable Ringer
Versatile stripping tool allows for jacket and conductor stripping for many types of round cable, including multi-conductor fiber, coaxial, twisted pair, and basic insulated conductors. This is a physically larger prep tool than the other Ringer tools. This version also works well for specialty cable preparation where traditional fixed blade stripping tools just dont work as needed for the application.
