Keithley 2016

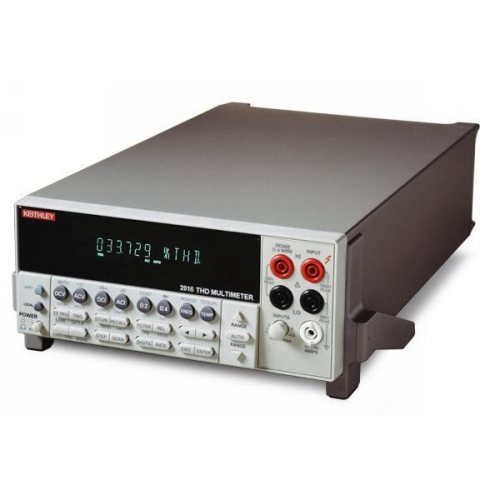

Model 2016 Total Harmonic Distortion, 6-1/2-Digit DMM w/ 9V Source

Key Features and Benefits:

  • THD, THD+Noise, and SINAD measurements
  • 20Hz-20kHz sine wave generator
  • Fast frequency sweeps
  • 9.5Vrs single-ended or 19Vrms differential output
  • Individual harmonic magnitude measurements
  • 5 standard audio shaping filters
  • 13 DMM functions (6 1/2 digits)

The Model 2016 Total Harmonic Distortion Multimeters combines audio band quality measurements and analysis with a full-function 6 1/2-digit DMM. Test engineers can make a broad range of voltage, resistance, current, frequency, and distortion measurements, all with the same compact, half-rack measurement instrument. The Model 2016 has twice the sine wave generator output of the Model 2015 for applications that require test signals greater than 8Vrms.


Related Applications:

  • Wireless communication device audio quality testing
  • Component linearity testing
  • Lighting and ballast THD limit conformance testing
  • Telephone and automotive speaker testing
