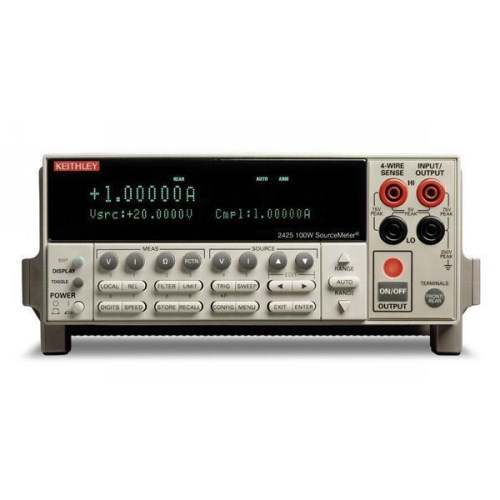

Model 2425 100W SourceMeter w/ Measurements up to 100V and 3A
Key Features and Benefits:
- New class of instruments
designed for high speed DC testing
- Family of products offers
wide dynamic range: 10pA to 10A, 1µV to 1100V, 20W to 1000W
- 4-quadrant operation
- 0.012% basic accuracy with 5
1/2-digit resolution
- 6-wire Ω measurement with
programmable I source and V clamp
- 1700 readings/second at 4 1/2
digits via GPIB
- Built-in comparator for fast
pass/fail testing
- Optional contact check
function
- Digital I/O for fast binning
and connection to component handlers
- GPIB, RS-232, and Trigger
Link interfaces
- TestPoint and LabVIEW drivers
Keithley's SourceMeter family is designed specifically for test applications
that demand tightly coupled sourcing and measurement. All SourceMeter models
provide precision voltage and current sourcing as well as measurement
capabilities. Each SourceMeter instrument is both a highly stable DC power
source and a true instrument-grade 5 1/2-digit multimeter. The power source
characteristics include low noise, precision, and readback. The multimeter
capabilities include high repeatability and low noise. The result is a compact,
single-channel, DC parametric tester. In operation, these instruments can act
as a voltage source, a current source, a voltage meter, a current meter, and an
ohmmeter. Manufacturers of components and modules for the communications,
semiconductor, computer, automotive, and medical industries will find the
SourceMeter instruments invaluable for a wide range of characterisation and
production test applications.
The Model 2425 100W SourceMeter® extends the voltage range of the 2420 to
100V, enabling 100W capability in the 1A range. Like the Model 2420 High
Current SourceMeter, it also offers a 3A range with 60W power capability. The
Model 2425 was designed for production testing of medium-power devices like
DC-to-DC converters, power supplies, and other components requiring between 60W
and 100W of total DC power.
Related Applications:
- Devices:
- Discrete semiconductor
devices
- Passive devices
- Transient suppression
devices
- ICs, RFICs, MMICs
- Laser diodes, laser
diode modules, LEDs, photodetectors
- Circuit protection
devices: TVS, MOV, Fuses, etc.
- Airbags
- Connectors, switches,
relays
- Tests:
- Leakage
- Low voltage/resistances
- LIV
- IDDQ
- I-V characterisation
- Isolation and trace
resistance
- Temperature coefficient
- Forward voltage,
reverse breakdown, leakage current
- DC parametric test
- DC power source
- HIPOT
- Dielectric withstanding
