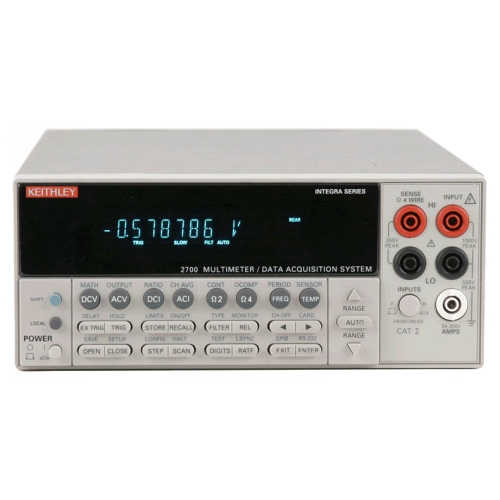

Model 2700 DMM, Data Acquisition, Datalogging System w/ 2 Slots
Key Features and Benefits:
- Combines functions of DMM,
switch system, and datalogger
- True 6 1/2-digit (22-bit)
resolution
- Choice of 12 switch/control
plug-in modules
- Up to 200 differential input
channels (with 300V isolation) for measurement and control
- Convenient front panel inputs
- Free LabVIEW™,
LabWindows/CVI, Visual Basic, C/C++, and TestPoint™ drivers (IVI style)
- GPIB and RS-232
communications capabilities
- Free ExceLINX™-1A datalogging
software
Integra Series systems (2700, 2701, 2750) combine precision measurement,
switching, and control in a single, tightly integrated enclosure for either
rack-mounted or benchtop applications. These cost-effective, high performance
test platforms offer affordable alternatives to separate DMMs and switch
systems, dataloggers/recorders, plug-in card data acquisition equipment, and
VXI/PXI systems. The Integra Series plug-in switching and control modules offer
unmatched flexibility and testing efficiency for a wide range of industries and
applications. System builders can create test solutions with a combination of
channel count, cost per channel, and system performance unmatched by any other
single-box measurement system. The input modules provide the flexibility to
vary the channel count from 20 to 200 (2-pole), apply a stimulus to the device
under test, route signals, control system components, and make precision
measurements with up to 14 functions. Robust digital I/O capabilities can be
used for triggering, handshaking with other automation equipment, and alarm
limit outputs. Scan rates of up to 500 channels/second (up to 3500
readings/second on a single channel) will increase test productivity.
Related Applications:
- Production test of electronic
products and devices
- Accelerated stress testing
(AST)
- Process monitor and control
- Device characterisation/R&D
- Low ohms, multichannel measurements
