Keithley 6514

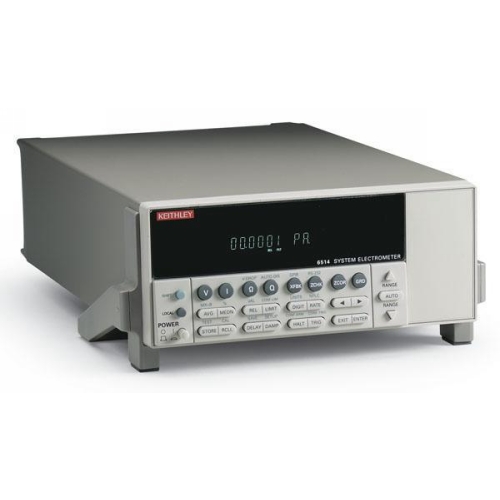

Model 6514 Programmable Electrometer

Key Features and Benefits:

  • <1fA noise
  • >200TΩ input impedance on voltage measurements
  • Charge measurements from 10fC to 20μC
  • High speed - up to 1200 readings/second
  • Interfaces readily with switches, computers, and component handlers
  • Cancels voltage and current offsets easily

The Model 6514 Electrometer combines flexible interfacing capabilities with current sensitivity, charge measurement capabilities, resolution, and speed that are equal or superior to our earlier electrometers. The Model 6514's built-in IEEE-488, RS-232, and digital I/O interfaces make it simple to configure fully automated, high speed systems for low-level testing.


Related Applications:

  • Current sensitivity, coupled with low-voltage burden, makes it ideal for:
  •  Photodiode dark-current measurements
  •  Measurement of charge imparted to photocopier toner
  •  Radiation dosimetry measurements
