Keithley 6517A

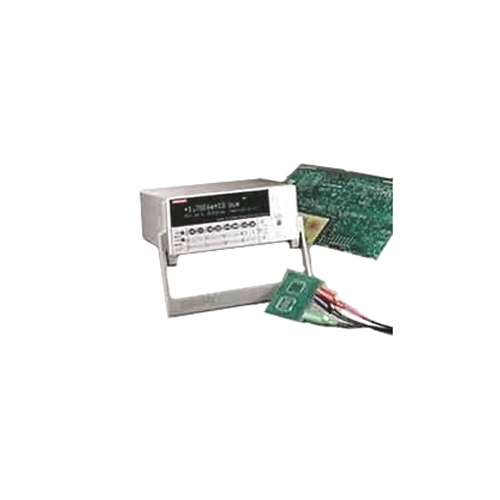

Keithley's 6-1/2-digit Model 6517A Electrometer/High-Resistance Meter is the ultimate tool for performing high-resistance measurements. Its 1fA measurement noise, coupled with its ?1kV voltage source, makes it extremely flexible for many resistance applications. In addition, its unique alternating polarity resistance method enables repeatable measurements, even in circumstances where background currents previously made measurements impossible. It also excels at all electrometer functions. Its exceptional 200Tohms input impedance in voltage measurements, its current measurement range from 1fA to 20mA, and its charge measurements from 10fC to 2?C, make it a very versatile product.

Measures resistances up to 10e17 Ohms
100aA to 20mA current measurement range
<20?V burden voltage on lowest current ranges
200TOhms input impedance
<2fA bias current
Up to 125 readings/s
0.75fA p-p noise
Built-in ?1kV voltage source
Unique voltage reversal method for high resistance measurements
