Keithley 7011-S

Keithley 7011-S
Keithley logo

Keithley 7011-S

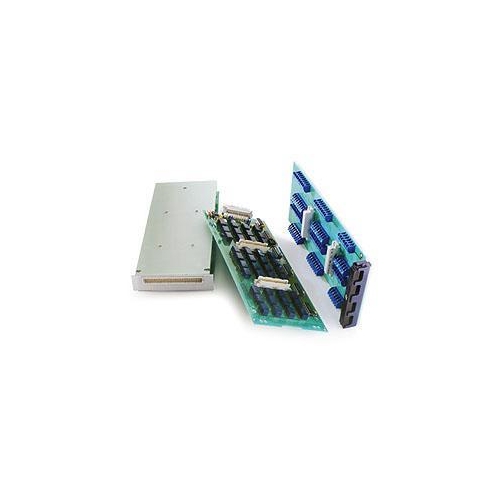

Model 7011-S Quad 1x10 Mux w/ Screw Terminals (for Models 7001 and 7002)

Key Features and Benefits:

  • Quad 1x10 multiplexer for 2-, 4-, or 8-pole operation
  • Connects to 7001/7002 backplane for easy expandability
  • 500nV, 100pA offsets

The Model 7011 40-channel multiplexer has four independent banks of 1x10 switching. Each channel is 2-pole. These four banks can be combined for a wide variety of switching configurations - for example, dual 1x20, or 1x10 and 1x30, or one large 1x40. The 7001 mainframe can automatically configure the 7011 to switch 4-pole signals by combining channel pairs. This gives you a dual 1x10 4-pole multiplexer or a single 1x20 4-pole multiplexer.
