Keithley 7019-C

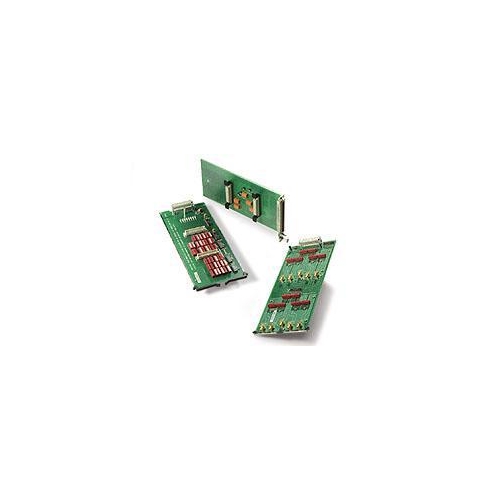

Model 7019-C 6-Wire Ohms Matrix Card w/ Mass-Terminated 96-Pin Connector (for Models 7001 and 7002)

Key Features and Benefits:

  • For high speed production test of resistor networks
  • Supports Series 2400's 6-wire Ω measurements
  • Dual 3x6 matrix configuration
  • 100,000,000 closure life
  • <0.5Ω contact resistance
  • 200V, 1A rated

The Model 7019-C 6-Wire Ohms Matrix Card is specifically designed for automated production testing of resistor network devices in conjunction with the six-wire ohms function of Keithley's Series 2400 SourceMeter instruments and Model 7001 or 7002 Switch Mainframes. When these instruments are combined with the 7019-C in a production test system, the "per element" test time is typically less than 10ms, with maximum speeds typically less than 4ms.


Related Applications:

Testing resistor network devices
