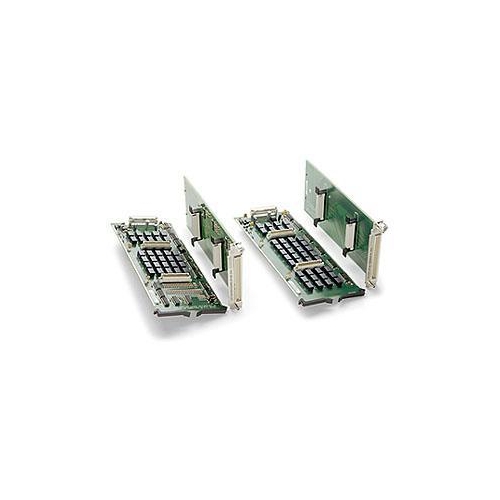

Model 7036 Single-Pole Relay Card w/ 40 Independent Switches and a Mass-Terminated 96-Pin Connector (for Models 7001 and 7002)

Key Features and Benefits:

  • Mass terminated connection
  • 1A switch rating
  • <100pA offset current
  • <4μV contact potential

The Model 7036 and 7037-D single-pole relay switching cards are well-suited for configuring automated test systems for portable devices. The Model 7036 offers 40 independent channels of 1-pole Form A switching, while the Model 7037-D provides 30 channels, plus ten independent digital inputs and ten independent digital outputs for control applications. The 7036 provides a 96-pin mass terminated connector. The 7037-D has two heavy duty 50-pin D-sub connectors at the ends of short cables. The D-sub connector version is designed for industrial/production applications where repeated connects/disconnects with external cables are required. The 7037-DT is an extra connector board for the 7037-D card that can be used to upgrade a standard 7037-D to a mass terminated connector.


Related Applications:

  • Production test systems that require signal routing and automation control
  • Device or subassembly evaluation/ analysis systems
  • Production testing of low-power products such as portable telecommunications devices, portable PCs, battery-powered medical devices, and other battery-powered items
