Keithley 7152

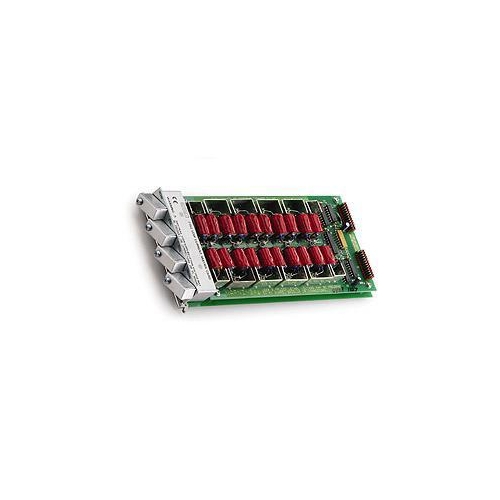

Model 7152 4x5 Low-Current Matrix Card (for Models 7001 and 7002)

Key Features and Benefits:

  • Sub-pA offset current
  • Easy interconnect and expansion
  • Maximum signal 200V and 1A
  • Standard mass terminated cable accessories

The Model 7152 is an ideal solution for small to moderate-size matrix systems that require superior performance in DC isolation for measurements of semiconductor parameters and insulating properties of materials. Offset current is <1pA with path isolation >1013Ω. Each matrix crosspoint is a twopole relay with the ability to switch both signal and guard.


Related Applications:

High-isolation measurements in semiconductor and materials testing.
