Keithley 7166

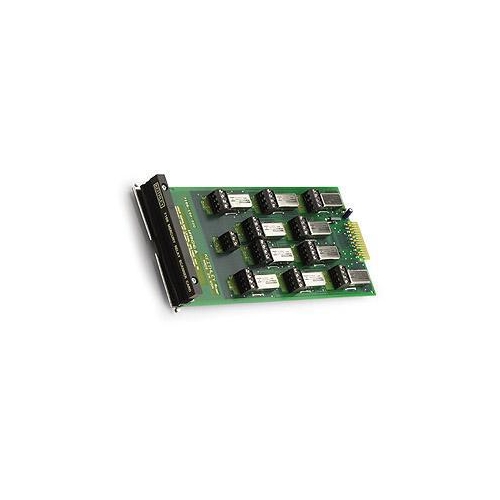

Model 7166 Relay Card w/ 10 Mercury Wetted Reed Relays (for Models 7001 and 7002)

Key Features and Benefits:

  • Mercury-wetted relays
  • 2-pole Form A
  • Quick disconnect screw terminal connections
The Model 7166 consists of ten 2-pole, mercury-wetted, reed relays and comes configured as a 1x10 multiplex scanner. That is, any or all of the ten (2-pole) input channels can be routed to the output. The relay card can be configured for use as a ten-channel switching card by removing jumpers installed on the card. In this configuration, up to ten independent inputs can be individually controlled and switched to a corresponding isolated output.
