Keithley 7701

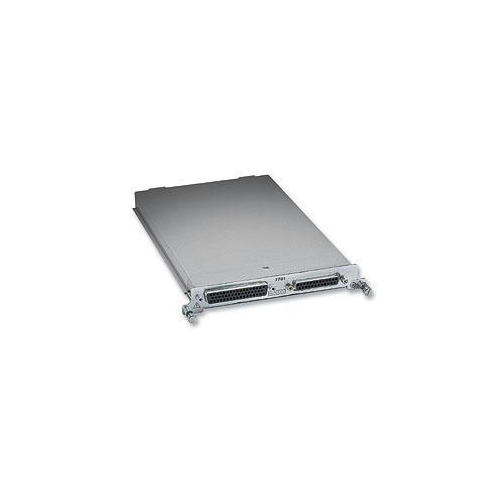

Model 7701 32-Ch, Diff Mux Module (for Models 2700, 2701, and 2750)

Key Features and Benefits:

  • Configurable for 32 channels of differential measurements, with up to 16 channels of 4-pole measurements
  • Two female D-shell connectors are standard for secure hook-up and quick teardown
  • 150V, 1A capacity for voltage channels; 60W, 125VA
  • Relay closures stored in onboard memory
  • Screw terminal jumpers allow user-configurable DMM connections

The Model 7701 plug-in module offers 32 channels of 2-pole or 16 channels of 4-pole multiplexer switching. Its 32 channels can be configured for common-side 4-wire ohms. They can also be configured as two independent banks of multiplexers. It is ideal for RTD or thermistor temperature applications.


Related Applications:

RTD or thermistor temperature applications
