Keithley 7703

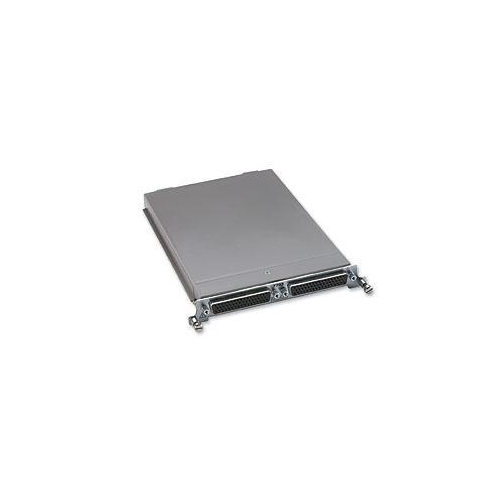

Model 7703 32-Ch, High-Speed, Diff Mux Module (for Models 2700, 2701, and 2750)

Key Features and Benefits:

  • 32 channels for general purpose measurements
  • Relay actuation time of less than 1ms for high-speed scanning
  • Two- or four-wire measurement
  • Two 50-pin female D-sub connectors are standard for secure hook-up and quick teardown

The Model 7703 plug-in module offers 32 channels of 2-pole or 16 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. The nonlatching reed relays provide high speeds and are designed for 300 volt, 500mA; 10VA. The relay closures are stored in onboard memory. The Model 7703 is ideal for RTD and thermistor temperature applications.


Related Applications:

RTD and thermistor temperature applications
