Keithley 7707

Keithley 7707
Keithley logo

Keithley 7707

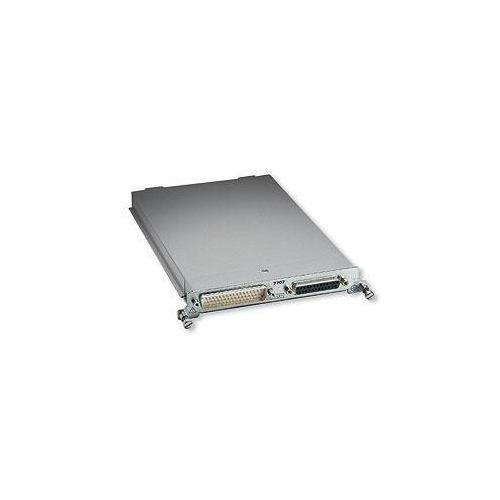

Model 7707 10-Ch Diff Mux Module w/ 32-Ch Digital I/O (for Models 2700, 2701, and 2750)

Key Features and Benefits:

  • 300V, 1A capacity; 60W, 125VA maximum (analog)
  • 33V, 100mA capacity (digital)
  • Digital outputs are short circuit protected
  • Relay closures stored in onboard memory

The Model 7707 plug-in module offers 10 channels of 2-pole or 5 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. The Model 7707 also provides 32 digital input/output channels (four 8-bit ports) for I/O control. Connect the Model 7707 to industry standard solid-state relays to switch up to 980VA.


Related Applications:

Temperature applications (RTD, thermistor)
