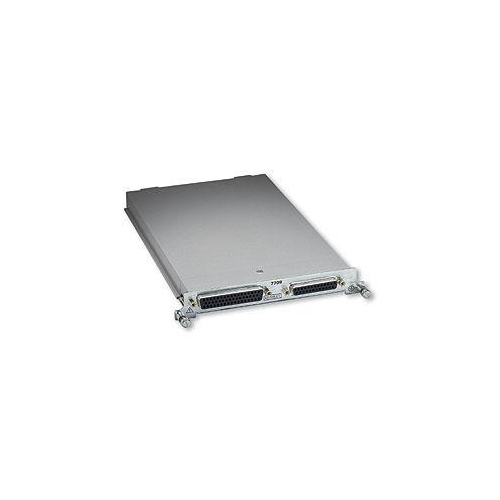

Model 7709 6x8 Matrix Module (for Models 2700, 2701, and 2750)

Key Features and Benefits:

  • Automatic two- or four-wire connection to DMM
  • 6 row x 8 column matrix
  • Expandable to larger switch configurations by daisy-chaining or cascading multiple modules
  • Two female D-sub connectors are standard for secure hook-up and quick teardown
  • 300V, 1A capacity
  • Relay closures stored in onboard memory

The Model 7709 plug-in module is a two-pole, 6x8 matrix module. It can connect any combination of six differential channels of instrumentation to any combination of eight differential device-under-test channels. The instrumentation can be AC and DC sources, internal or external meters, oscilloscopes, etc. This matrix configuration allows wide flexibility for complex test systems.


Related Applications:

Temperature applications (RTD, thermistor)
