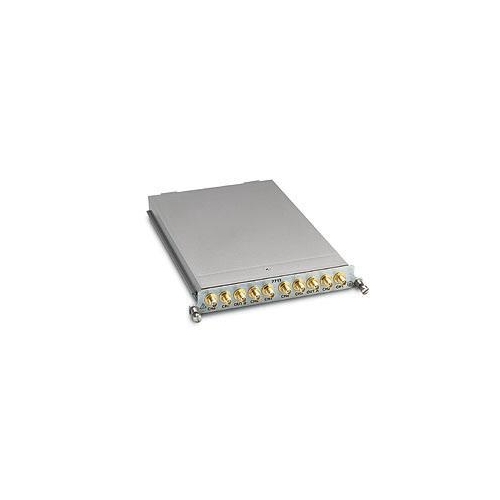

Model 7711 2GHz Bandwidth 50-Ohm, Dual 1 x 4 Plug-In RF Switching Module (for Models 2700, 2701, and 2750)

Key Features and Benefits:

  • Signal routing performance to 2GHz
  • Switches up to 60VDC
  • Rear panel SMA connections
  • Onboard switch closure counter
  • Onboard S parameter storage

The Model 7711 plug-in module provides an economical, wideband signal routing solution that complements the DC/low frequency switching and measurement capability of the Integra Series systems. The Model 7711 offers dual 1x4 configurations and can interface with a wide range of external AC instruments, including oscilloscopes, pulse generators, and signal analysis tools. One channel in each multiplex bank is always closed to the corresponding OUT connector. All connections are easily accessible from the rear panel.


Related Applications:

  • General purpose RF signal routing to/from oscilloscopes, signal generators, frequency counters, etc.
  • Switching power supply ripple test
  • Wireless device testing
  • High frequency component test
