Krohn Hite

Krohn Hite 7500

Krohn Hite 7500
Krohn Hite logo

Krohn Hite 7500

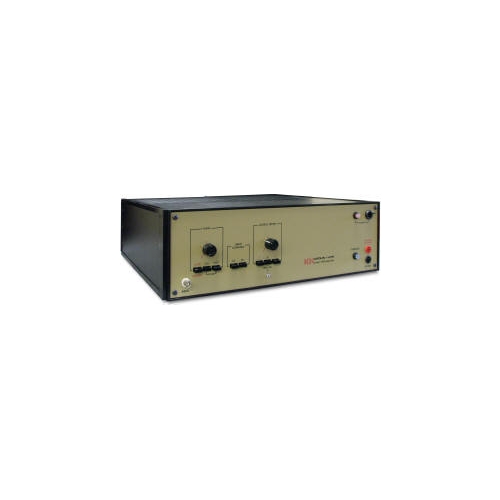

The 7500 Wideband Power Amplifier is a direct-coupled wideband amplifier that offers extended output power and voltage capabilities, low distortion, an advanced, and all solid state design. It provides more than 75 watts of continuous power (150 watts at DC), and 125 volts RMS from DC to 100kHz. Frequency response is typically flat to within 0.05dB over most of its range. In addition, the unit typically contributes only 0.05% of total harmonic distortion, at full power output, up to 10kHz. The voltage gain of the unit is non-inverting, and can be selected for either 20dB(10) or 40dB(100) of fixed gain, or continuously adjustable from zero to 40dB. The unit also provides either direct (DC) or capacitive (AC) input coupling. Frequency Range: DC to 1MHz Frequence Response: Less than ?0.1 dB Distortion: Less than 0.1% Maximum Voltage: 140 Volts RMS, Open Circuit Voltage Gain: 0 to 40 dB
[Krohn_Hite_7500]
