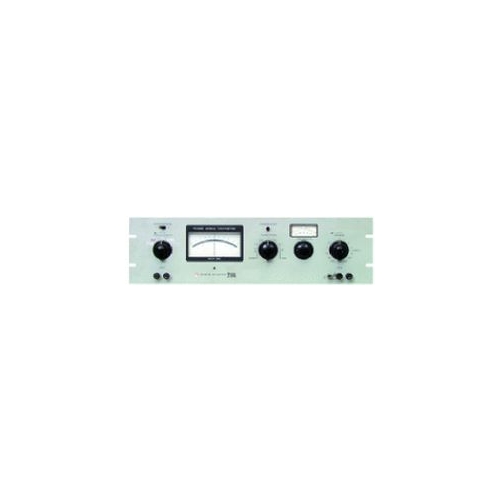

North Atlantic 214C

The quick and easy way to measure and directly read voltages?the 214C Phase Angle Voltmeter! The unit is solid-state and provides direct reading of total voltage, fundamental voltage, in-phase voltage, quadrature voltage and phase angle. The 214C is supplied with both signal and reference isolation. Frequency range covered is from 10Hz to 100kHz, phase sensitive: 1, 2, 3, or 4 frequencies from 30Hz to 20kHz with plug-in field changeable modules. Phase sensitive bandwidth of ?5%. Voltage range is 300 ?V to 300 V in 13 ranges with an accuracy of ?2% full scale, phase dial is ?1?. With field changeable modules, complete recalibration is readily accomplished by a single rear-panel adjustment.
