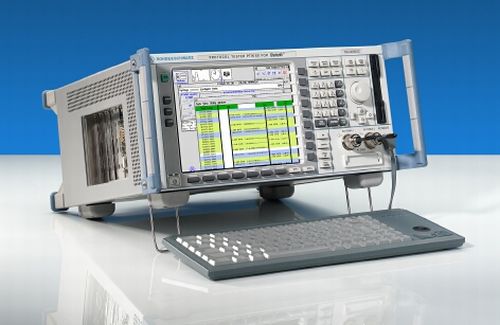

The Rohde & Schwarz Bluetooth Protocol Tester R&S PTW60 offers professional and comprehensive protocol test and analysis functions. It is ideal for use in the development and qualification testing of Bluetooth products. Equipped with programming interfaces, the R&S PTW60 is even suitable for developing new protocols.
Rohde & Schwarz, unlike most of its competitors, has adopted the strategy of developing protocol layers and the technology-dependent hardware completely on its own.
This allows the simulation of protocol errors at all layers, which enables an IUT's error tolerance and robustness to be determined for example.
R&S PTW60 protocol data flow and Service Access Points
Hardware components
- Industrial computer with Bluetooth
- RTSU (realtime signaling unit)
- External interfaces for networking (Ethernet) of R&S PTW60
- and connection of Bluetooth TCI (test controller interface) via UART, RS-232-C and USB
R&S PTW60 Bluetooth protocol stack
The realtime LynxOS operating system (realtime UNIX derivative) allows online protocol analysis. The IUT can be evaluated from the data output at the service access points (SAPs).
The analysis and graphic display tools of the R&S PTW60 can be tailored to user requirements from detail analysis to overview displays.
