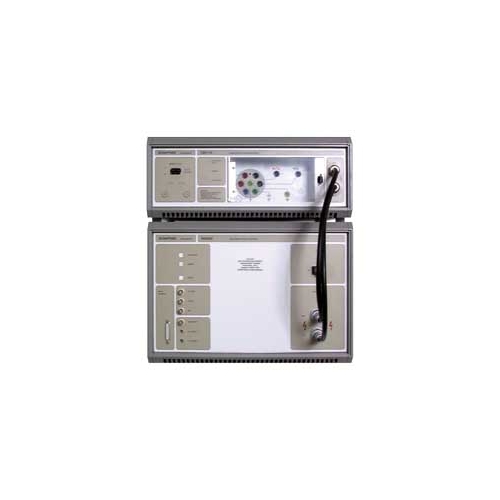

Schaffner NSG 650 High Energy Pulse Generator

Schaffner NSG 650 High Energy Pulse Generator
Schaffner logo

Schaffner NSG 650 High Energy Pulse Generator

Produces hybrid pulses of the shape 1.2/50 us (open circuit), 8/20 uS (short circuit), as well as the 0.5/100 kHz ring wave pulse. This unit complies with the standards and recommendations of IEC 801-5, ANSI-IEEE C62.41, IEEE 587, VDE 0109, etc. Operated via a personal computer (IBM XT, AT or compatible). Must be used with coupling network, SCH/CDN 110 or CDN 113.
[SCH_NSG_650]
