LMX150 FINDAR

Sensors and Software LMX150 FINDAR Forensics & Utility GPR Unit

Request a Quick Quote
Brochure
Request Repair / Calibration
.

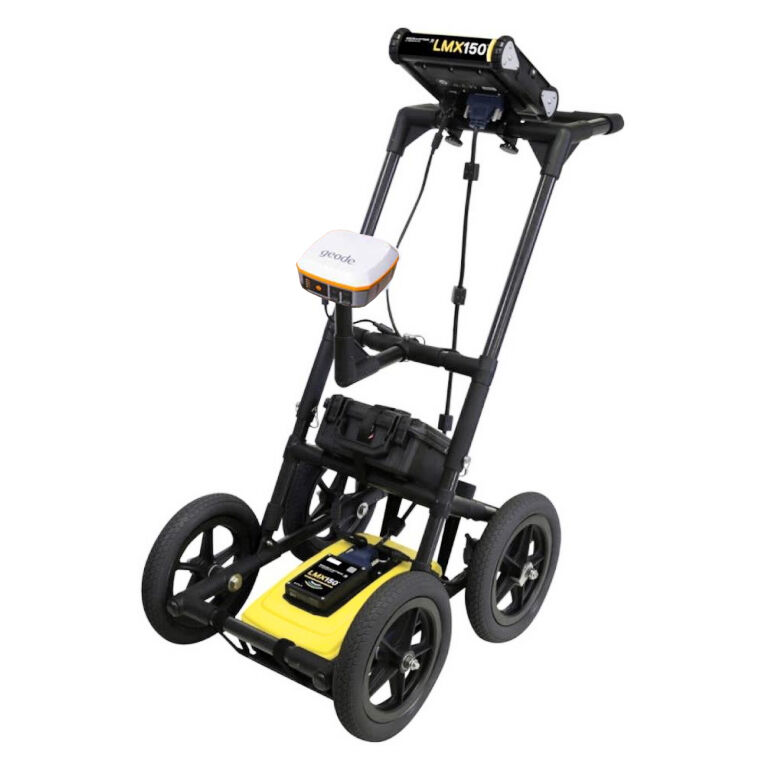

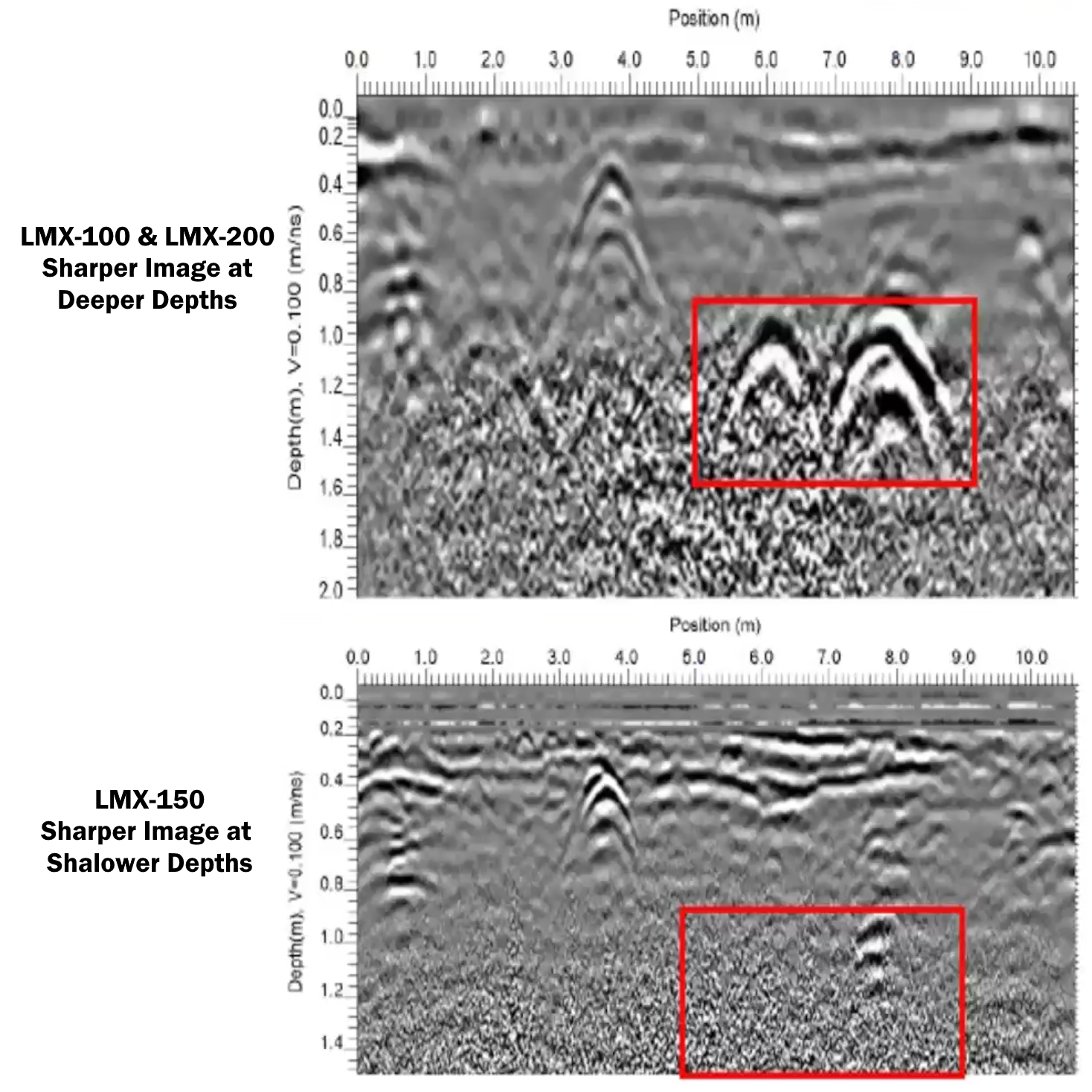

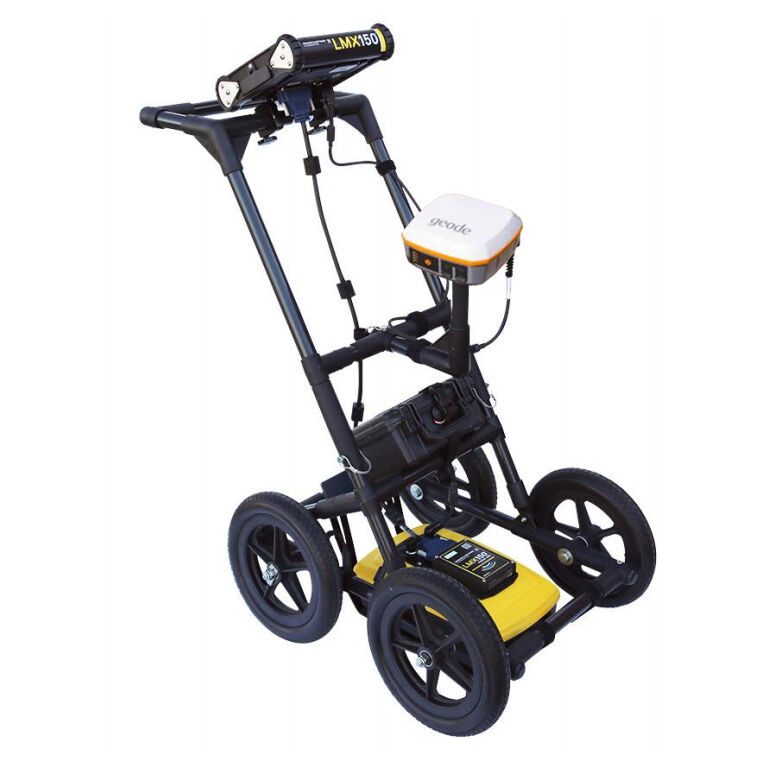

The LMX150 Findar Ground Penetrating Radar (GPR) Unit is ideal for detecting shallow utilities and situations where higher resolution is more important than depth. Due to its smaller size, it is particularly useful in cases where space is limited and when greater resolution is required in the topmost 1 to 3 meters of the ground. As a result, it is commonly used as a pavement or shallow/small utility solution GPR.


Sensors and Software LMX150 FINDAR Forensics & Utility GPR Unit

Originally designed as a forensic based tool for investigators, the LMX150 has also been proven to be a great Utility GPR for locating shallower objects up to 3 Meters (500MHz Antenna Frequency)


LMX150 FINDAR:

  • Finds utilities (metallic and non-metallic) up to 3 m
  • Grid Scan Mode
  • Map View
  • Interpretations
  • Supports External GPS
  • Grows with your business. Upgrades available
  • Store and organize your data in 9 Projects containing 99 Lines and 9 Grids each
  • Data export for post processing in EKKO_Project Software (Add-on)
  • EKKO Project Software is required for the LMX150

ABOUT THE SOFTWARE


The LMX150 and LMX200 comes pre-installed with an Enhanced Software Package used for viewing results on the GPR screen only. If you download the results onto a USB drive and then try to download the results onto a computer, you will then be required to purchase one of the EKKO_Project V6 Software options to view and report on the results.


EKKO_Project Software Options:

  • EKKO_PROJECT V6 Core
  • EKKO_PROJECT V6 Examine
  • EKKO_PROJECT V6 Reveal
  • EKKO_PROJECT V6 3D Reveal
  • EKKO_PROJECT V6 Suite
  • EKKO_PROJECT V6 3D Suite

These software options are supplied with a USB Dongle which needs to be inserted into the computer at all times while using the software.


A Link to these Ekko_Project Softwares is linked in the ORANGE box below:



Please note: The LMX150 requires EKKO Project Software EKKO_PROJECT SOFTWARE
