40 MHz Bandwidth Option 40
-
Peak-to-Peak Auto Triggering
-
0.3 div Trigger Sensitivity
-
Front Panel Z-Axis Input
-
10 ns/div Max. Sweep Rate
Characteristics
Vertical System (2 Identical Channels)
Bandwidth (-3 dB) and Rise Time: 20 MHz and 17.5 ns (5
to 35 degree C). 15 MHz and 23.3 ns (0 to 40 degree C).

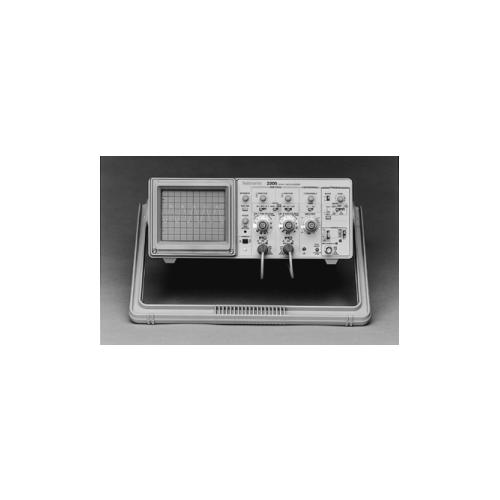

2205 Option 40 Bandwidth (-3 dB) and Rise Time: 40 MHz
and 8.75 ns (+5 to +35 degree C). 35 MHz and 10 ns (0 to 40
degree C).
Deflection Factor and Accuracy: 5 mV/div to 5 V/div
±3%, (15 to 35 degree C); ±5%, (0 to 40 degree
C).
Vertical Operating Modes: CH 1, CH 2, CH 2 IN-VERT,
ADD, ALT, CHOP.
CMRR: At least 10:1 at 10 MHz.
Input R and C: 1 Megohm, 25 pF.
Max Input Voltage: 400 V (DC + peak AC), 800 V p-p.
Channel Isolation: 100:1 at 20 MHz.
