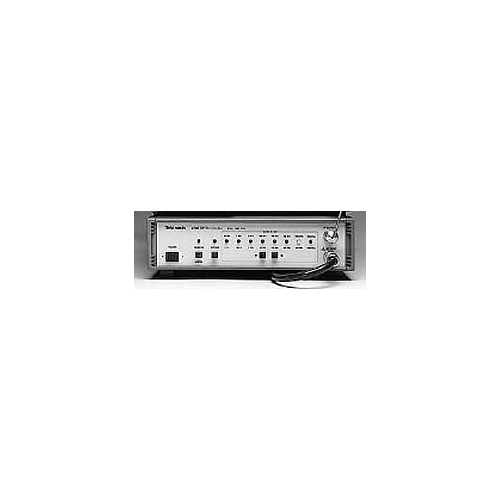

Tektronix 2706 RF Preselector

The Tektronix 2706 Stepping RF Preselector is designed to be used with spectrum analysers for EMI measurements and other applications. The 2706 can be attached to the bottom of 271X Spectrum Analysers to form a single compact unit. Signals present at the 2706 input connector are routed directly to the spectrum analyser when preselection is not desired. When preselection is desired, one of eight bandpass filters is switched into the circuit to limit the range of frequencies passed to the analyser.
