Tektronix 464 Dual Trace Storage Oscilloscope

Tektronix 464 Dual Trace Storage Oscilloscope
Tektronix logo

Tektronix 464 Dual Trace Storage Oscilloscope

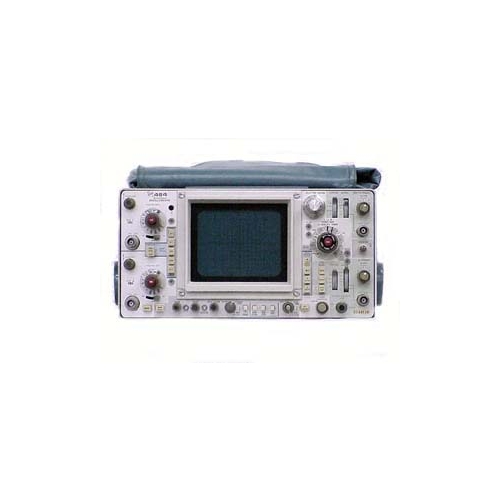

The 464 Dual Trace Storage Oscilloscope is designed to display non-repetitive or slow moving signals. A portable unit with DC to 100MHz response. Features two modes of storage: Variable Persistence and Fast Transfer. Stored writing speed of 110 div/?sec. Deflection factor from 5 mV /div to 5 V/div in a 1-2-5 sequence. Sweep rate of 5 nsec/div with X10 magnifier. Weighs 26 lbs. CRT mesh filter installed to minimize CRT faceplate radiation. Four signal-output BNC connectors on the rear chamber changes to a type that improves shielding of the connected signal leads
[Tektronix_464]
