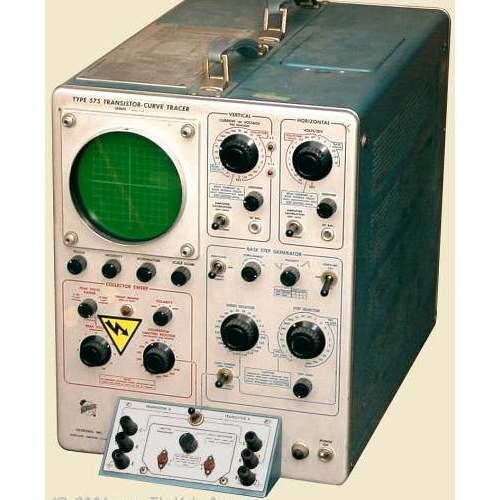

Tektronix 575 Transistor Curve Tracer

The Type 575 Transistor-Curve Tracer displays the dynamic characteristic curves of both NPN and PNP transistors on the screen of a 5-inch cathode-ray tube. Several different transistor characteristic curves may be displayed, including the collector family in the common-base and common emitter configuration. In addition to the transistor characteristic curves, the Type 575 is used to display dynamic characteristice of a wide range of semiconductor devices.
