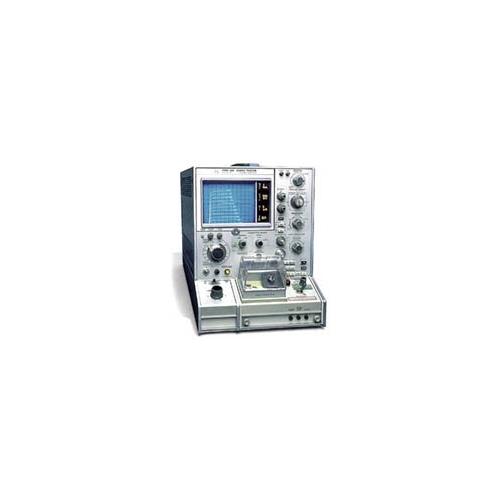

Tektronix 576 Curve Tracer

Tektronix 576 Curve Tracer
Tektronix logo

Tektronix 576 Curve Tracer

The 576 Curve Tracer is a rugged high power measurement system for tests on 2- and 3-terminal discrete semiconductors. With a collector supply of up to 220 W peak, adjustable current limiting is provided in the step generator. A display area readout of test results and setup parameters decreases the chances of operator error. Voltage step ranges are up to 1500 V and current step ranges are up to 20 A peak pulse. Switchable polarity and display magnification for more accurate resolution. Accepts three different test fixtures for your testing needs (sold separately).
