Tektronix 577 Curve Tracer

Tektronix 577 Curve Tracer
Tektronix logo

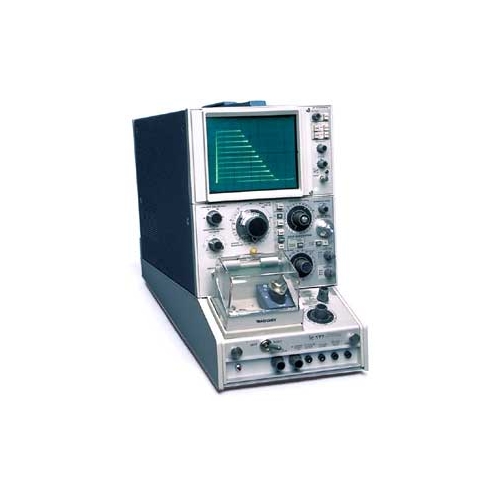

Tektronix 577 Curve Tracer

The 577/D1 Curve Tracer provides for low current measurements with storage display capabilities and also allows characteristic curves of two devices to be overlaid. The Collector supply (five modes, five ranges) provides 6.5 V/10 A, 25 V/2.5 A, 100 V/0.6 A, 400 V/0.15 A, 1600 V/0.04 A. Requires test fixture for operation (sold separately). Storage display capabilities Collector supply (five modes, five ranges) of 6.5 V/10 A, 25 V/2.5 A, 100 V/0.6 A, 400 V/0.15 A, 1600 V/0.04 A Allows Characteristic Curves of Two Devices to be Overlaid Transforms Dot Displays into Complete Characteristic Curves Excellent for Low Current Measurements Requires test fixture for operation (sold separately).
