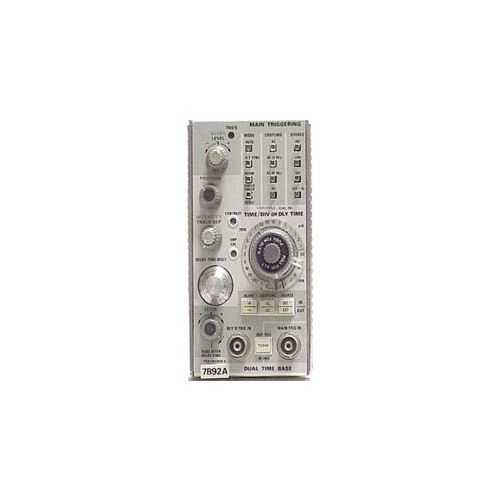

Tektronix 7B92A Dual Time Base

Tektronix 7B92A Dual Time Base
Tektronix logo

Tektronix 7B92A Dual Time Base

The 7B92A Dual Time Base Plug-In provides a 0.5 ns/div to 0.2 s/div calibrated time base. The unit has triggering to 500MHz, alternate display of Intensified Delaying and Delayed Sweeps, and Int/Ext/Ext?10/Line triggering capabilities (main and delay external triggering). The 7B92A is recommended to be used only in the 7800 and 7900 Series Mainframes. The unit also may be used is all other mainframes at slower sweep speeds.
[Tektronix_7B92A]
