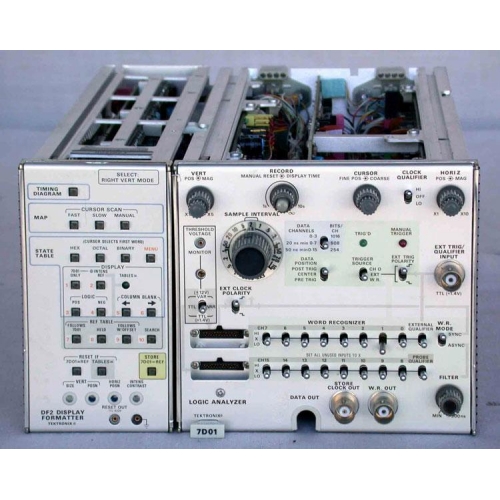

Tektronix 7D01/DF2 Logic Analyser, 16 Channel, 20MHz

Tektronix 7D01/DF2 logic analyser 16ch 20MHz

The 7D01 is a basic logic analyser. It has 4096 bit memory, and 4/8/16 channels with 100/50/25MHz sampling rates, respectively. The DF2 is detachable. It works perfectly for many an application.

The 7D01 has a word recognizer -- basically a multichannel comparator that compares each logic input to HIGH, LOW or N.C. When all cared-for signals are matching the word recognizer setting, the W.R. OUT goes high. This can be used to easily route a product of any of the logic signals (or inverted signals), onto the W.R. OUT connector.

The Tektronix 7D01/DF2 set, can display the contents of memory as x–y. dots on the display.

The 7D01 Logic Analyser Plug-In is for use in the 7000-series Mainframe. Acquires 4, 8 or 16 data channels simultaneously and word recognizer with two qualifiers. Features a clock qualifier, and captures single shot data. The formattable memory stores 4096 bits in 4, 8, or 16-channel formats. Movable cursor. P6451 probes not included. Two required for operation.
