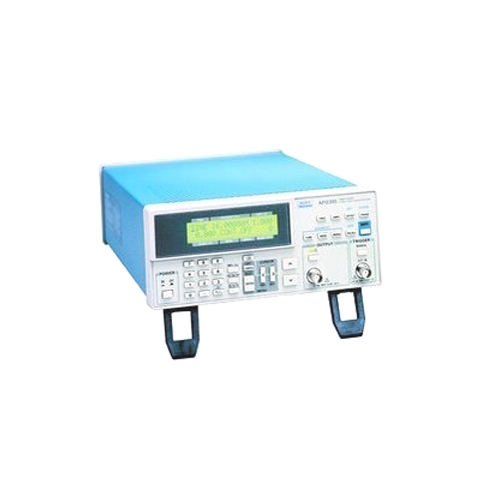

Tektronix AFG310 Arbitrary Function Generator

The AFG310 Arbitrary Function Generator is an excellent 16MHz function generator with built-in arbitrary waveform, capable of supporting standard waveforms including sine, square, triangle, ramp, pulse, DC, and noise. In addition, it has a frequency sweep function and three operating modes: Continuous, Triggered, and Burst. With a sampling rate of 16 MS/s, 12-bits vertical resolution, and a non-volatile memory that holds four 16,384-point waveforms, the AFG300 Series are powerful tools for simulating complex waveforms. Waveshapes can be downloaded directly from a Tektronix DSO, created with the included WaveWriterTM for Windows waveform editing software package, or entered via the front panel. The AFG300 Series supports waveform import function to receive waveforms from Tektronix DSOs (TDS Series and 2400 Series) and arbitrary waveform generators (AWG 2000 Series and AFG 2000 Series) via GPIB. This capability makes the AFG300 Series perfect accessories for Tektronix DSOs.
