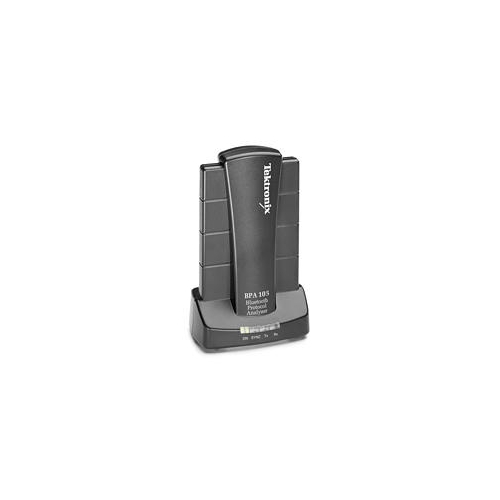

Tektronix BPA105 Bluetooth Protocol Analyser

The BPA105 is a protocol debug tool for engineers integrating Bluetooth technology into their designs. It allows engineers to log, decode and display all of the baseband packets transmitted and received within a Bluetooth piconet. In addition, higher level protocol packets and commands can be viewed. With the use of selective triggering and filtering, the user can capture or display data of interest. In piconet mode, user-generated traffic such as errors or data packets can be introduced into transmissions.

Features & Benefits:
-Operation in Either Independent (Sniffer) or Piconet (Master/Slave) Modes Allows the Developer Maximum Test and Debug Flexibility.
-Free Run Analyser Display Allows User to Continuously Monitor Latest Session Transactions with Real-time Screen Updates.
-Direct Logging to PC Hard Drive Provides Maximum Log History File Size, Allowing for Long-term Monitoring of Packet Traffic.
-Advanced Triggering and Filtering Allows User to Capture, Log and Display Only Events or Transactions of Interest.
-Powerful API Provides Custom Test Capabilities - Automated Tests and Remote Control of Analysers over Network.
-Sync Wizard Simplifies Synchronization and Monitoring Process for All Types of Piconet Configurations.
-Profile View Displays Only the Applicable Protocols Associated with a Profile for Analysis and Debug.

System Requirements
-Microsoft Windows 98SE, Me, 2000, XP Home or XP Professional.
-Intel Pentium III, 600 MHz or above. Lower processor speeds are acceptable if Decryption and Free Run mode are not used.
-256 MB of RAM.
-Minimum of 200 MB of free space on hard drive.
