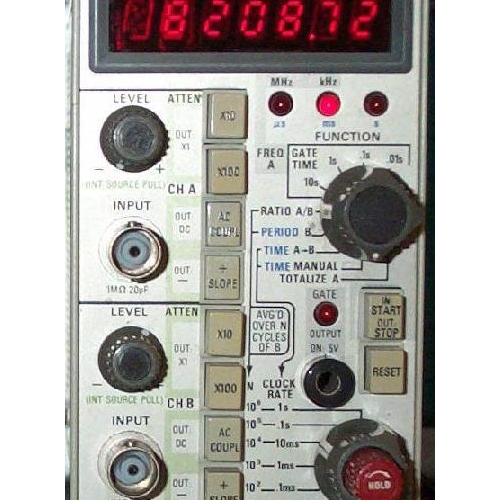

Tektronix DC503 Universal Counter Plug-In

The DC 503 Universal Counter offers counting to 100 MHz and provides the versatility of six measurement funcitons: frequency, period, ratio, time A to B, time manual, and totalize. The two channels (A and B) have individual BNC inputs and separate trigger level, attenuator, and coupling mode controls. Seven-digit readout is via seven-segment light emitting diodes (LEDs) with automatically positioned decimal point; leading zeros (to the left of the most significant digit or decimal point) are blanked. A flashing display indicates register overflow. The DC 503 offers high performance in a variety of applications. Its interval measurement capability with selectable clock rates is useful for digital equipment design and maintenance, particularly digital control and data communications work. The A-channel frequency range of dc to 100 MHz serves in communication and rf use. High resolution measurements of low frequencies are available quickly in the period mode with averaging up to 1 million periods available. TIME MANUAL provides an electronic stop watch function with selectable clock rates. TOTALIZE counts and display the total number of input events at rates from dc to 100 MHz.

• Direct Counting to 100 MHz

· Six Functions -- Frequency, Period, Ratio, Time A-B, Time Manual, Totalize

· Period and Ratio Averaging

· 7-Digit LED Display

· Time Base Option
