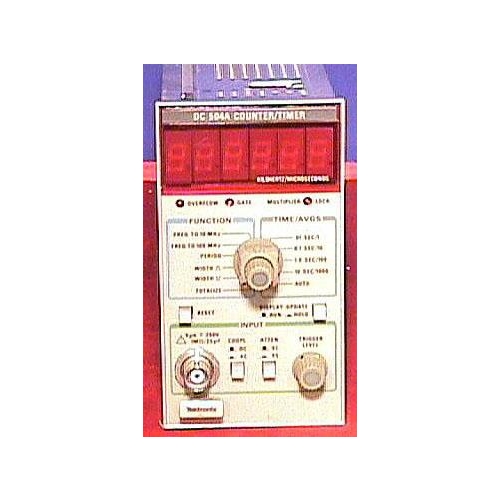

Tektronix DC504A 6-digit 100MHz Digital Counter

The Tektronix DC 504A is a multi-function counter/timer designed to operate in one compartment of any TM 500 or TM 5000-Series power module.

Frequency measurements to 100 MHz are within the capability of the DC 504A. Frequencies above 10 MHz are internally prescaled. Measurement of pulse widths and periods at rates up to 2.5 MHz is possible. Width and Period averaging of up to 100 events is possible, An autorange feature allows the counter to automatically select the gate time (up to one second) or number of averages (up to 100). A x100 phase-locked loop multiplier automatically increases display resolution by a factor of 100 in the 10 Hz to 25 kHz frequency range. The 10 MHz internal time base provides a single-shot resolution of 100 ns. Input signals can be ac or dc coupled and attenuated by a factor of five. All measurement results are displayed in a six digit LED readout.
