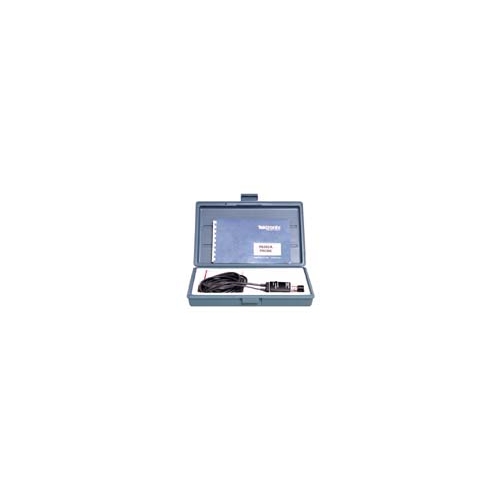

Tektronix P6202A Active Fet Probe 10x, 500 MHz, 10 Mohm Input

Tektronix P6202A Active Fet Probe 10x, 500 MHz, 10 Mohm Input
Tektronix logo
More info

P6202A

Tektronix P6202A Active Fet Probe 10x, 500 MHz, 10 Mohm Input

Request a Quick Quote
Request Repair / Calibration
The P6202A FET Probe is a low circuit loading active signal acquisition probe for 400 series, 2400 series, and 7000 series families of oscilloscopes. It provides a wide linear dynamic input range for accessing most digital device families using today's logic voltage levels.

Attenuation: 10X/100x
Bandwidth at -3dB: 500MHz
DC Offset Range: ?55/200/V
System Input Resistance: 10 Mohms
Typical Input C: 2.0/2.0pF
Max Voltage: ?200 V
