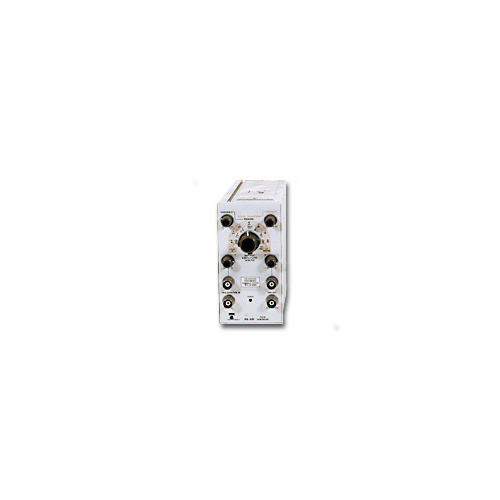

Tektronix PG501 50 MHz Pulse Generator

The PG501 Pulse Generator Module is designed for use in the TM500-Series Mainframes and provides from 5Hz to 50MHz repetition rate. Features simultaneous plus and minus outputs, a wide range of pulse-period durations and duty factors, trigger output, and external trigger/duration input. Provides 0.5 to 5 V output into 50-ohms. Its performance and ease of operation make it well-suited for basic digital and analog applications.
